WAN vs. Site-to-Site VPN: Key Differences Explained

wan
site-to-site vpn
network
security
vpn

This article compares WAN (Wide Area Network) and Site-to-Site VPN (Virtual Private Network), highlighting their key differences. We’ll explore what each technology is and how they are used.

What is a WAN?

WAN stands for Wide Area Network.

traditional WAN

Figure 1: Traditional WAN, Wide Area Network

As shown in Figure 1, a WAN is a geographically dispersed network that connects various locations. Here’s a breakdown of its characteristics:

  • Large Scale: Connects geographically distant offices and locations.
  • Interconnectivity: Connects LANs (Local Area Networks), MANs (Metropolitan Area Networks), cellular networks, and more.
  • Wide Coverage: Supports coverage from tens to thousands of kilometers.
  • Diverse Transmission Mediums: Uses fiber optics, wireless communication, coaxial cables, and other mediums for data transmission.
  • Variable Speed: The speed of operation depends on the transmission medium used.
  • Cellular Integration: Often includes cellular technologies such as GSM, WiMAX, and LTE.

What is a Site-to-Site VPN?

VPN stands for Virtual Private Network.

site to site VPN

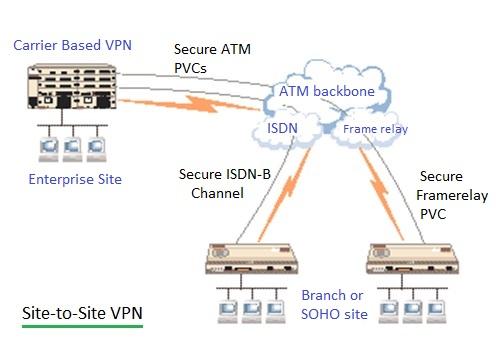

Figure 2: Site-to-Site VPN, Virtual Private Network

Figure 2 illustrates a Site-to-Site VPN, a specific type of VPN used to connect entire networks across different locations, providing a secure and encrypted tunnel for communication. Key characteristics include:

  • Underlying Technologies: It often utilizes technologies like ISDN, Frame Relay, or ATM networks for establishing the connection.
  • WAN Replacement: Site-to-Site VPNs are frequently implemented to replace traditional WAN setups, offering a more cost-effective and secure solution.

Key Differences between WAN and Site-to-Site VPN

While a Site-to-Site VPN can function as a type of WAN, the critical difference lies in how the connection is established and secured.

FeatureWANSite-to-Site VPN
ConnectivityPhysical connections (leased lines, etc.)Virtual connections over the internet
SecurityRequires dedicated security measuresBuilt-in encryption and authentication protocols
CostGenerally more expensiveGenerally less expensive, leverages existing internet
ComplexityCan be complex to set up and manageEasier to manage with modern VPN technologies
FlexibilityLess flexible, requires physical changesMore flexible, easily scalable and reconfigurable

In essence, a traditional WAN relies on dedicated physical infrastructure, while a Site-to-Site VPN leverages the internet to create a secure, encrypted connection between networks. VPNs provide a cost-effective and more flexible alternative in many scenarios.
