This tutorial covers essential networking basics, including circuit switching vs. packet switching, TCP/IP protocol fields, ARP/RARP protocol fields, IP addresses, MAC addresses, and networking devices like hubs, switches, bridges, routers, gateways, and firewalls. This section focuses on networking gateways with examples.

From a networking perspective, a Gateway is a device that facilitates communication between two heterogeneous networks/systems. This is achieved through protocol translation. A gateway incorporates the protocols of both systems to enable interoperability.

Gateways can also provide interconnectivity between more than two different systems. Various gateways are designed to meet the needs of different systems/technologies. Examples include GSM/CDMA gateways for VOIP, T1(1.544Mbps)/E1(2.048Mbps) gateways, access gateways, GMSCs, and more.

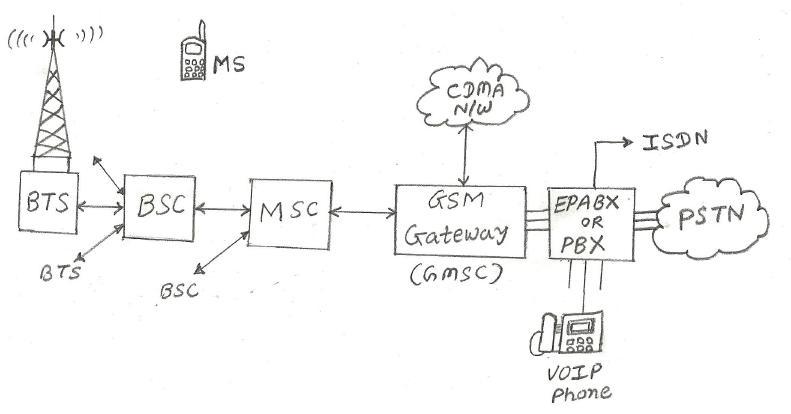

The following figure illustrates a Gateway in a GSM network.

networking gateway

As shown, a GSM gateway provides connectivity with PSTN and ISDN through EPABX/PBX, and also to other wireless networks such as CDMA, HSPA, etc. As mentioned, all landline phones, with and without VOIP functionalities, are connected with EPABX/PBX.

Gateway functionalities are also designed to interface GSM and CDMA networks, as well as other wireless standards like WLAN and WiMAX.
