Automotive Ethernet: Advantages and Disadvantages

This page explores the pros and cons of using Ethernet in the automotive industry, highlighting the benefits and drawbacks of this technology.

Introduction

Before Ethernet’s arrival, the automotive industry struggled with increasing complexity within vehicles. As cars became more advanced, incorporating new features using existing bus systems became challenging. Modern electronic systems demand higher bandwidth for communication between Advanced Driver Assistance Systems (ADAS), infotainment systems, connected services, and other Electronic Control Units (ECUs). These demands paved the way for Ethernet’s adoption in the automotive sector.

What is Automotive Ethernet?

The term “Automotive Ethernet” simply refers to the application of Ethernet technology within the automotive domain. Ethernet is already widely used in computer networks like Local Area Networks (LANs) and Wide Area Networks (WANs, like the internet). The growing complexity and connectivity needs of modern vehicles have driven the adoption of Ethernet in automotive applications. Over the years, various Ethernet standards have been developed to support different network speeds, cable types, and topologies. These standards are managed by organizations like the IEEE, OPEN Alliance, ISO, IETF, and TSN (Time-Sensitive Networking).

Established Ethernet standards include:

• IEEE 802.3 (Ethernet)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE 802.3ba (40 Gigabit Ethernet)
• IEEE 802.3bj/802.3bm (100 Gigabit Ethernet)
• IEEE 802.3bs (400 Gigabit Ethernet)

In automobiles, Ethernet serves various purposes, including in-vehicle networking, Advanced Driver Assistance Systems (ADAS), infotainment systems, autonomous driving, and other communication requirements. Key features that have propelled Ethernet into the automotive industry include higher bandwidth, scalability, reliability, integration, safety, and security. Automotive Ethernet provides a robust and flexible communication infrastructure for modern vehicles, supporting the enhanced connectivity needs of automobiles, including data transfer between various units.

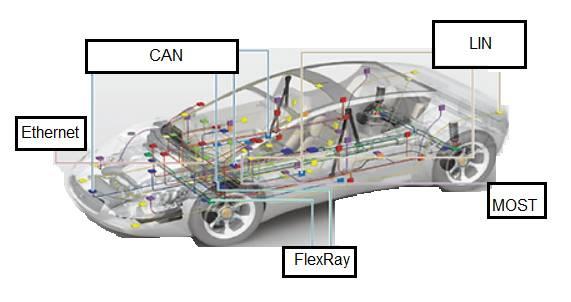

Figure 1 (see image above) illustrates various interface types used in a modern car, such as CAN, LIN, MOST, FlexRay, and Ethernet.

Benefits (Advantages) of Automotive Ethernet

Here are the main benefits of using Ethernet in automotive applications:

• Higher Data Rates: Ethernet offers significantly higher data rates compared to traditional communication protocols used in the automotive sector. This enables the transmission of large amounts of data generated by cameras, sensors, and other systems in modern vehicles.
• Scalability: It’s a scalable technology that allows the addition of new devices and functionalities without major changes to the automobile’s infrastructure. This provides the flexibility to accommodate future upgrades and expansions.
• Integration: Ethernet enables the integration of multiple automotive systems onto a single network. This provides unified communication between various components such as the powertrain, chassis, body control, infotainment, and ADAS systems.
• Real-Time Communication: Ethernet incorporates mechanisms for deterministic and real-time communication. This ensures the timely delivery of critical information, which is essential for safety applications such as ADAS and autonomous driving.
• Simplified Architecture: Integrating multiple systems onto a single network reduces the amount of wiring and connectors in the vehicle. This leads to a simplified architecture, reduced weight, and improved reliability.
• Security: Ethernet incorporates robust security features such as authentication, encryption, and secure communication protocols. This protects against unauthorized access and prevents malicious attacks, ensuring the safety and security of connected vehicles.
• Compatibility: Ethernet is a widely adopted technology in various industries, which enables compatibility, interoperability, and easier collaboration between automotive manufacturers and technology providers.

Drawbacks (Disadvantages) of Automotive Ethernet

Despite its advantages, Automotive Ethernet also has some drawbacks:

• Cost: Ethernet technology in vehicles can be more expensive compared to traditional automotive communication protocols.
• EMI Susceptibility: Ethernet signals are susceptible to electromagnetic interference (EMI), which can degrade signal quality and affect data transmission.
• Determinism: It may not always provide the same level of deterministic behavior as some traditional automotive communication protocols.
• Complexity: Ethernet networks in vehicles can become complex to manage, particularly as the number of connected devices and systems increases.
• Retrofitting Challenges: Introducing Ethernet into existing vehicles not initially designed to support it can be challenging. Retrofitting older vehicles with Ethernet technology may require significant modifications.
