GFSK vs. GMSK: A Detailed Comparison

GFSK (Gaussian Frequency Shift Keying) and GMSK (Gaussian Minimum Shift Keying) are modulation schemes widely used in wireless communication systems, especially in digital communication and mobile networks. Both are types of Frequency Shift Keying (FSK), a modulation technique where the carrier frequency is shifted to represent different symbols or bits.

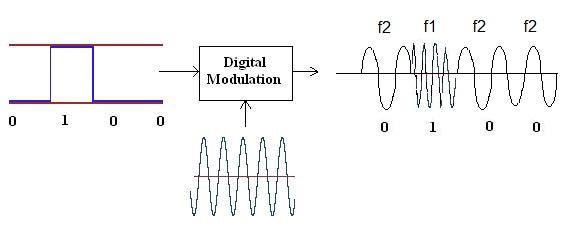

The figure above illustrates basic FSK modulated waveforms, where 1 and 0 are represented by two different frequencies. The FSK modulation process can be expressed as:

• s(t) = A * cos(2 * π * f1 * t) for Binary 1
• s(t) = A * cos(2 * π * f2 * t) for Binary 0

Where:

• s(t) is the modulated output waveform.
• A is the amplitude.
• f1/f2 are the carrier frequencies for 1 and 0, respectively.
• t is the timestamp.

Both GFSK and GMSK employ Gaussian filtering to shape the frequency pulses. This Gaussian filter helps reduce side lobes and improves the spectral efficiency of the transmitted signals. This makes these modulation schemes essential for optimizing the use of available bandwidth. They’re commonly found in digital communication systems to transmit digital data over radio frequency channels and are used in various wireless communication standards.

GFSK Modulation

GFSK is characterized by the use of a Gaussian filter to shape the frequency pulses. This pulse shaping is introduced to reduce the side lobes of the transmitted signal, leading to better spectral efficiency. GFSK is commonly used in various digital communication systems, including Bluetooth and some wireless local area networks (WLANs).

The benefits of GFSK modulation include:

• Improved spectral efficiency compared to traditional FSK.
• Reduced bandwidth occupancy due to the filtering.

GMSK Modulation

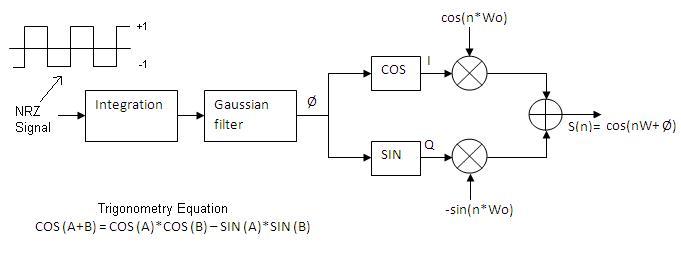

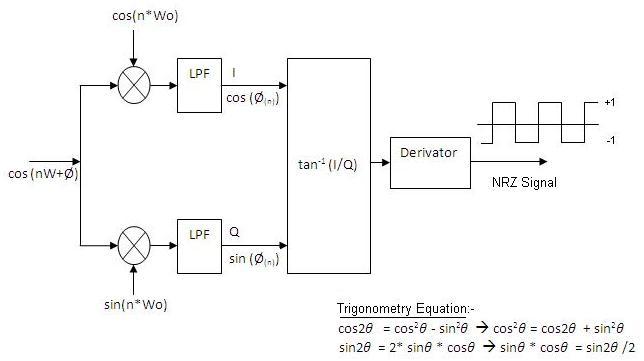

GMSK is a special case of GFSK with a specific choice of modulation index that minimizes bandwidth while maintaining a constant amplitude. It uses a Gaussian filter to shape the pulse and minimize abrupt changes in frequency. GMSK is widely used in mobile communication systems, such as GSM (Global System for Mobile Communications). It’s preferred for its constant envelope property, which simplifies power amplification in mobile devices.

The benefits of GMSK modulation are:

• Constant envelope property, making it suitable for power-efficient and non-linear power amplifiers.
• Improved spectral efficiency and reduced inter-symbol interference.

Difference Between GFSK and GMSK

The following table differentiates GFSK and GMSK modulation types with respect to various parameters:

Conclusion

In summary, both GFSK and GMSK use Gaussian filtering for shaping frequency pulses in digital communication systems. However, GMSK is a specialized form of GFSK with a constant envelope and a specific modulation index, making it particularly suitable for mobile communication applications.
