TWT vs. Klystron: A Detailed Comparison

microwave
twt
klystron
tube
amplifier

This article breaks down the differences between Traveling Wave Tubes (TWTs) and Klystrons, two important types of microwave tubes. Let’s delve into the basics of each before comparing them directly.

Traveling Wave Tube (TWT)

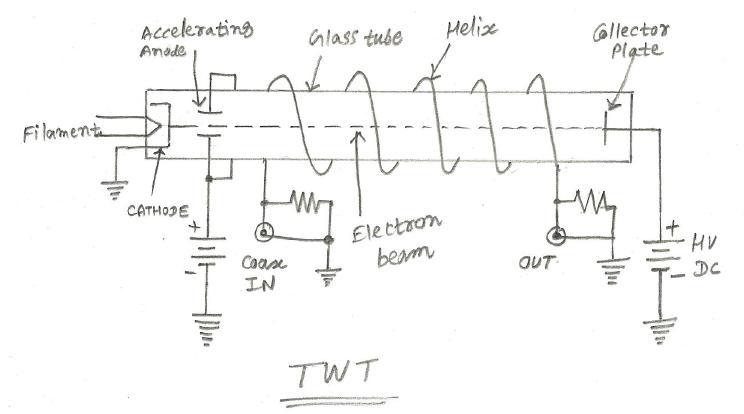

TWTA

The TWT is a vital microwave tube, primarily used when wide bandwidth, high gain, low noise, and moderate peak/average power are needed. There are two main types:

  • Helix TWT: Uses a helix structure for wave propagation.
  • Coupled Cavity TWT: Uses coupled cavities for wave propagation.

The electron gun, magnet, and collector modules function similarly to those in a Klystron (described below). A key difference is that the cavities found in Klystrons are replaced by a helix-shaped structure in the TWT.

Klystron

The Klystron is a high-power vacuum tube frequently utilized in radar systems as both an amplifier and an oscillator. It’s conceptually similar to a pipe organ, where air vibrating within a tube produces sound energy at a specific frequency. In a Klystron, electrons vibrate within a glass tube at the desired frequency to generate microwave energy.

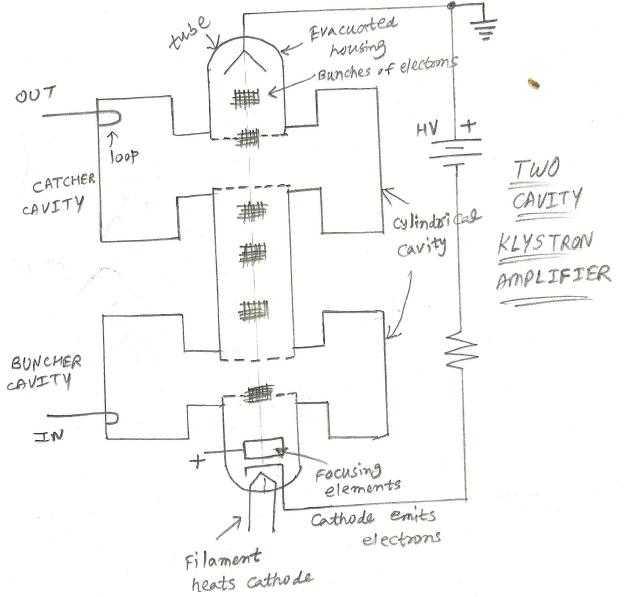

Two cavity Klystron

Klystrons typically have two or more cavities, depending on the gain and bandwidth requirements of the application. The two main types are:

  • Two-Cavity or Multi-Cavity Klystron: Used as a low-power amplifier. The two-cavity Klystron has a buncher cavity and a catcher cavity. Multi-cavity Klystrons feature intermediate cavities between these to achieve higher gain and bandwidth.

  • Reflex Klystron: Used as an oscillator. It’s a single-cavity device that operates based on the “reflex” action of the electron beam. The main distinction from two/multi-cavity Klystrons is the use of a single cavity for modulation/demodulation and a repeller instead of a catcher cavity.

Klystrons operate on the principle of velocity modulation of electrons and require strong electrostatic fields for efficient operation.

TWT vs. Klystron: Key Differences

The following table summarizes the key differences between TWTs and Klystrons:

FeatureTWTKlystron
InteractionContinuous interaction between EM field and electron beam over the entire length.Interaction occurs only at the gaps of resonant cavities.
Cavity CouplingCoupled cavity TWT exhibits coupling between cavities.Each cavity operates independently; no mutual coupling.
Resonant CavitiesDoes not have resonant cavities; uses a helix structure.Has resonant cavities.
BandwidthWider bandwidth of operation.Smaller bandwidth of operation.
EfficiencyLower efficiency.Comparatively high efficiency.
TypesHelix and coupled cavity.Two or Multi-cavity, and reflex klystrons.
Frequency of Operation300 MHz to 50 GHz4 to 200 GHz
Power Handling (CW)Up to 200 Watts1 mW to 2.5 W
