Traveling Wave Tube (TWT) Advantages and Disadvantages

microwave
traveling wave tube
amplifier
rf component
twt

This page explores the pros and cons of TWTs (Traveling Wave Tubes). It highlights the advantages and disadvantages of TWTs, offering a balanced perspective on this microwave amplifier technology.

What is a TWT? (Introduction)

The Traveling Wave Tube (TWT) is a favored microwave amplifier, commonly used in the 300 MHz to 50 GHz frequency range. It’s known for delivering significant gain, often up to 40dB with a single device.

There are two main types of TWTs:

  • Helix TWTs: Suited for power levels up to 2.5 KW.
  • Coupled Cavity TWTs: Designed for higher power applications, up to 15 KW.

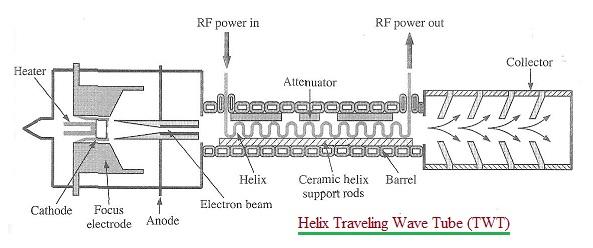

TWT-Traveling Wave Tube

The operational principle of a traveling wave tube shares similarities with that of a klystron.

Benefits or Advantages of TWTs

Here are the key benefits of using TWTs:

  • Wideband Operation: TWTs are wideband devices thanks to their use of non-resonant wave circuits, enabling operation across a broad frequency spectrum (300 MHz to 50 GHz).
  • Low Noise: They are known for their low-noise characteristics, making them suitable for sensitive applications.
  • High Gain: TWTs provide considerable gain, with single devices capable of achieving gain levels up to 40 dB.
  • Moderate Power Handling: They can deliver moderate peak power and average power levels.
  • High Efficiency (Coupled Cavity TWTs): Coupled cavity TWTs can achieve efficiencies up to 60% and gain up to 70 dB. They can also provide peak power outputs ranging from tens of KW to thousands of KW, and average power up to tens of KW.

Drawbacks or Disadvantages of TWTs

Despite their advantages, TWTs also have some drawbacks:

  • Lower Efficiency (Generally): TWTs typically operate at lower efficiencies compared to some other amplifier technologies.
  • Coupling Effects (Coupled Cavity TWTs): In coupled cavity TWTs, coupling effects can occur between the cavities, potentially affecting performance.
  • Peak Power Limitation (Helix TWTs): Helix TWTs face limitations on high peak power due to the thickness of the helix wire. This limitation can be overcome by using a coupled cavity TWT, which utilizes a series of coupled cavities arranged axially along the beam instead of a helix.
