This tutorial section on LTE basics covers the following subtopics: Main page features, terminologies, Frame TDD FDD, Channel types, PHY stack, throughput, VoLTE CA, cell search, network entry, Timers, PSS vs SSS, Security, LTE Bands, EARFCN, and Hotspot router.

This page describes Primary Synchronization Signal (P-SS) and Secondary Synchronization Signal (S-SS) sequences used in the LTE system. It provides a comparison between P-SS and S-SS as per the LTE standard.

Primary Synchronization Signal (P-SS) Sequences

  • Three PSS sequences are used in LTE, corresponding to the three physical layer identities within each group of cells.
  • The PSS is constructed from a frequency-domain ZC sequence of length 63.
  • Transmitted on the 6th symbol of slot 0 and slot 10 of each radio frame on 72 subcarriers centered around DC.

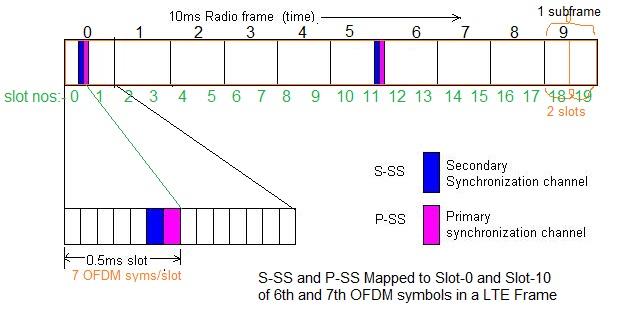

LTE PSS vs SSS or primary SCH secondary SCH

Secondary Synchronization Signal (S-SS) Sequences

  • SSC1 and SSC2 are two codes that are two different cyclic shifts of a single length-31 M sequence.
  • Each SSS sequence is constructed by interleaving, in the frequency-domain, two length-31 BPSK-modulated secondary synchronization codes.
  • Two codes are alternated between the first and second SSS transmissions in each radio frame.
  • This enables the UE to determine the 10 ms radio frame timing from a single observation of a SSS.
  • Transmitted on the 5th symbol of slot 0 and slot 10 of each radio frame on 72 subcarriers centered around DC.

PSS carries physical layer identity (NID(2))(N_{ID}^{(2)}). SSS carries physical layer cell identity group (NID(1))(N_{ID}^{(1)}).

Cell identity is computed using:

NIDcell=3NID(1)+NID(2)N_{ID}^{cell} = 3 * N_{ID}^{(1)} + N_{ID}^{(2)},

Where NID(1)=0,1,...,167N_{ID}^{(1)} = 0, 1, ..., 167 and NID(2)=0,1,2N_{ID}^{(2)} = 0, 1, 2

SignalFull FormDirectionPositionModulation/Coding SchemeFunction
P-SSPrimary Synchronization SignalDownlink6th symbol of slot 0 and slot 10 (time axis) mapped on 72 subcarriers centered around DC (frequency axis)Zadoff Chu sequence of length 63UE first finds the primary synchronization signal (PSS) which is located in the last OFDM symbol of the first time slot of the first and 5th sub-frames. This enables the UE to be synchronized on the sub-frame level. Primary Synchronization Signal helps for Slot Timing Detection and Physical Layer ID (0,1,2) detection
S-SSSecondary Synchronization SignalDownlink5th symbol of slot 0 and slot 10 (time axis) mapped on 72 subcarriers centered around DC (frequency axis)BPSK modulated length-31 M sequenceFrom SSS, UE is able to obtain physical layer cell identity group number (0 to 167). It helps for Radio Frame Timing detection, finds Physical Layer Cell ID, cyclic prefix length detection, FDD or TDD detection

P-SS constellation diagram

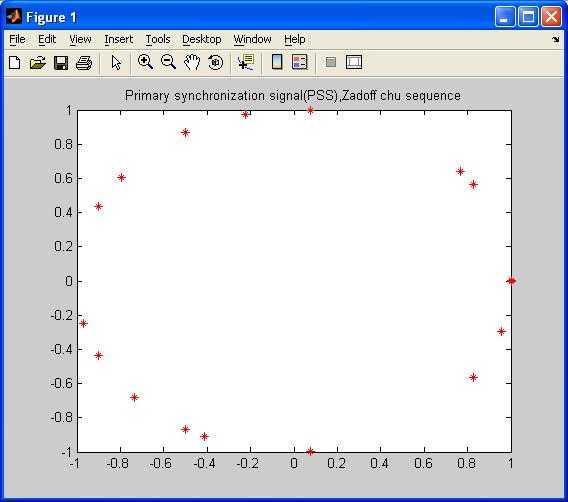

Primary Synchronization Signal PSS constellation

As shown in the figure, the P-SS constellation plots the frequency domain view of Zadoff Chu sequences.

S-SS constellation diagram

Secondary Synchronization Signal SSS constellation

As shown in the figure, the S-SS constellation plots BPSK M sequence signals.
