RFThread vs WiFi: Choosing the Right Protocol for Your Needs
When it comes to connecting smart home devices, Thread and WiFi are two prominent communication protocols. Each offers unique benefits and use cases. This guide compares their features, advantages, and limitations, helping you choose the right protocol for your specific requirements.
Introduction
Both WiFi (Wireless Fidelity) and Thread are wireless technologies used for communication between devices. Both technologies offer interoperability between devices from different manufacturers so that they communicate seamlessly. Both support IP-based communication, which enables seamless integration with internet and cloud-based services. They support encryption and authentication mechanisms, which ensure secure communication between devices.
These technologies are used with the Matter protocol, which is used in smart home systems due to their respective benefits.
What is WiFi?
Wi-Fi stands for Wireless Fidelity. It is the technology that allows devices to connect wirelessly to a LAN (Local Area Network) and the internet. It uses RF waves to transmit and receive data using EM (Electro-Magnetic) waves.
It follows various IEEE 802.11 WLAN standards, viz. 802.11a, 11b, 11g, 11n, 11ac (WiFi-5), 11ax (WiFi-6), 11be (WiFi-7) etc. WLAN standards define PHY and MAC layer specifications and other technical specifications for the WiFi system.
WiFi works on various frequency bands such as 2.4 GHz, 5 GHz, and 6 GHz.
WiFi or WLAN architecture consists of an AP, router, switch, modem, stations (or clients) with NIC or WLAN SoCs, and network cables as shown in figure-1.
Let us understand the function of WiFi network elements.
- Access Point (AP): It is a device that provides wireless access to the WiFi network. It is connected to a wired network. It functions as a Hub for wireless devices requiring WiFi service.
- Router: It is a device that connects multiple networks and enables devices to communicate with each other. It routes traffic between different networks. It also provides a connection to the internet and cloud servers.
- Switch: It is a device that connects multiple devices in a WiFi network, which enables them to communicate with each other.
- Modem: It is a device that connects the WiFi network to the internet. It converts digital signals from the network into analog signals, which can be transmitted over fiber optic lines or telephone lines used to carry internet data.
In recent days, modem, router, and AP functionalities are combined in a single device usually known as a “WLAN Router.”
- Clients or Stations: These can be laptops or desktop PCs or Mobile phones or Tablets having built-in WiFi or WLAN SoCs in their respective mother boards. Wireless Network Interface Cards (NICs) are also available for laptops or desktop PCs to enable WiFi functionalities.
Advantages of WiFi
The benefits of WiFi are as follows:
- It offers high bandwidth, which makes it preferable for data-intensive applications such as streaming media files, file transfers, etc.
- It is easy to set up with simple configuration steps and the requirement of a single router.
- It is widely available in many public spaces, businesses, and homes.
- It supports a large number of devices on a single network.
- It is compatible with a wide range of devices such as smartphones, laptops, smart home devices, etc.
Disadvantages of WiFi
The drawbacks of WiFi are as follows:
- WiFi signals are affected due to wireless transmissions from other devices, physical barriers, and other environmental factors.
- WiFi consumes a lot of power, which is not preferable for battery-operated devices.
- WiFi signals have range limitations, which require the installation of additional WiFi access points and WiFi range extenders.
- WiFi signals are vulnerable to hacking if not secured as required.
- WiFi uses a single centralized router, which leads to the failure of the entire WiFi network when the router goes offline or becomes faulty.
What is Thread?
It is an IP-based wireless mesh networking technology designed for low-power IoT devices.
Thread is based on the IEEE 802.15.4 standard and uses IPv6 as a networking protocol. As it uses mesh topology, it allows devices to communicate with each other over multiple hops.
It uses the IPSec protocol to enable secure communication between devices. Hence, data is protected from unauthorized access. Thread devices interoperate with other networking technologies such as WiFi, Zigbee, and Bluetooth. Thread devices communicate with devices from other networks, which is essential for smart home systems.
Thread offers low power consumption, low latency, and high reliability.
Thread technology is used with the Matter protocol in the smart home ecosystem due to its low power and mesh topology. It can be used for various applications in a smart home such as lighting, security, temperature control, etc.

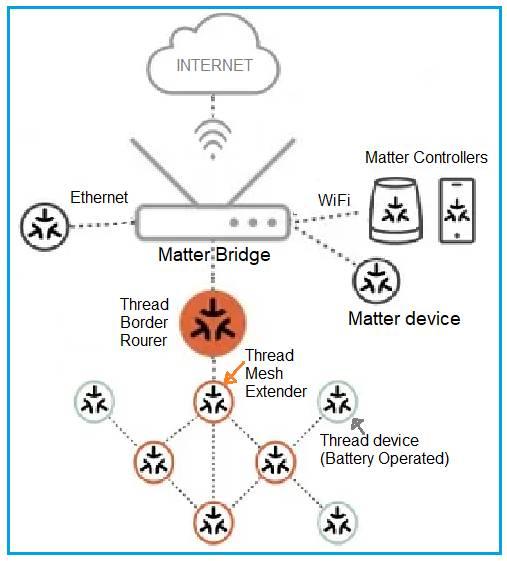

As shown in the figure-2, the Matter protocol enables devices to communicate regardless of the underlying technology such as Ethernet, WiFi, or Thread.
Advantages of Thread
The benefits of Thread are as follows:
- Low power consumption
- Robust security
- Support for a large number of devices in a single network
- There is no single router, and hence it eliminates a single point of failure unlike WiFi. It offers reliable connectivity due to multiple pathways for communication.
Disadvantages of Thread
The drawbacks of Thread are as follows:
- Limited availability as it is a new technology.
- Limited range compared to WiFi. Hence, it requires Thread Border Routers and Mesh Extenders to cover larger spaces.
- Thread may not be compatible with all devices and requires specific hardware/software.
- Thread is more complex than WiFi and requires additional setup and configuration procedures.
Difference between Thread and WiFi
The following table mentions a comparison between Thread and WiFi with respect to various parameters.
| Parameters | Thread | WiFi |
|---|---|---|
| Power consumption | Less, Thread devices run on battery for a longer period of time. | More, WiFi devices are not suitable for battery-powered applications. |
| Security | More, Thread supports powerful encryption and authentication mechanisms, which makes it robust against unauthorized access. It uses AES-128 encryption. | Less, WiFi networks are vulnerable to hacking and eavesdropping (if not secured properly). It uses WPA2 encryption. |
| Reliability | High, Thread is a mesh network, which eliminates a single point of failure due to its self-healing feature. In Thread, devices function as routers and relay messages. | Low, WiFi uses a central router, which leads to the failure of the entire network when the router goes offline or becomes faulty. |
| Scalability | Higher, Supports several hundred devices in a single network with each device having multiple IPv6 addresses. | Lower, Supports a limited number of devices that can connect to a router with each device having only one IP address. |
| Topology | Mesh | Star |
| Major application | Designed for smart home devices | Designed for internet access |
| Speed | Low speed | High speed |
| Interference | Less susceptible to interference | Susceptible to interference |
Conclusion
Both Thread and WiFi have their strengths. While WiFi excels in speed and range, Thread stands out for its low power consumption and reliability. Choose based on your IoT network’s needs and scale.
