Zigbee and Thread are two prominent IoT networking protocols, each with distinct advantages for smart home and industrial applications. This guide offers an in-depth comparison, examining their features, differences, and suitability for various use cases.

Introduction

Both Zigbee and Thread are utilized in low data rate wireless applications, particularly in smart home automation within the realm of IoT (Internet of Things). They both adhere to the IEEE 802.15.4 standards.

What is Zigbee?

Zigbee operates across two frequency bands: 898/915 MHz and 2450 MHz. It provides data rates of 20/40 Kbps and 250 Kbps in these respective bands. Zigbee devices are designed to conserve energy by utilizing sleep mode.

zigbee network

Zigbee Architecture

As depicted, a Zigbee network consists of a coordinator (C), routers (R), and end devices (E). It employs the AODV protocol for packet routing. For a thorough understanding of Zigbee network operation and the roles of each element, refer to Zigbee tutorials. These tutorials cover the physical layer, MAC layer, and application layer profiles.

Zigbee 3.0 is based on IEEE 802.15.4, specifically tailored for IoT applications. Devices compliant with this standard boast low power consumption, low data rates, and extended battery life. It also supports a mesh topology, eliminating any single point of failure, providing a scalable and secure network.

What is Thread?

Thread operates in the 2.4 GHz band, similar to Zigbee. It provides a secured mesh network for embedded, low-power, and low-cost devices.

The Thread Group, formed in 2014, boasts a membership of over 300 industry leaders across consumer and industrial sectors.

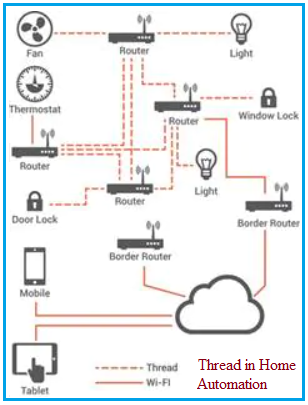

Thread in Home Automation

Thread network devices can access Wi-Fi through a router using the 6LoWPAN protocol, facilitating communication. Initially designed for home automation, Thread also finds applications in industrial settings like street lighting and building automation.

Here are some key features of Thread:

  • Frequency Band: 2.4 GHz ISM
  • Throughput: 250 Kbps
  • Topology: Mesh
  • Number of devices: 250 to 300
  • One-hop range: Up to a few hundred meters; routers can extend range through multi-hop

Zigbee vs Thread Protocol Layers

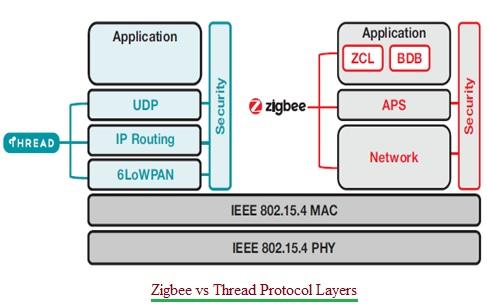

Zigbee vs Thread Protocol Layers

The figure above illustrates the protocol stack layers of both Zigbee and Thread wireless technologies.

Difference between Zigbee and Thread

The following table highlights the similarities and differences between Zigbee and Thread technologies.

FeaturesZigbeeThread
Frequency band2.4 GHz2.4 GHz
Range10 to 100 meters10 to 100 meters
Data rate (max.)250 Kbps250 Kbps
Network Topology TypeMeshMesh
Power usageLowLow
Application layer definedYESNO
IPv6 supportNOYES
Battery lifeFew yearsFew years
Certification Program and InteroperabilityEnd product certificationStack certification
SecurityNetwork wide encryption and authentication through install codePassword based authentication with DTLS (Datagram Transport Layer Security)
Cloud integrationZigbee gatewayThread border router
Latency performance for application packetsBestVery good

Conclusion

While Zigbee is widely established, Thread offers enhanced scalability and low power operation. Evaluate your network needs to decide which protocol aligns better with your IoT goals.
