NB-IoT vs. LoRa vs. SigFox: A Detailed Comparison

iot
lpwan
nb iot
lora
sigfox

Introduction

In the rapidly evolving world of the Internet of Things (IoT), NB-IoT, LoRa, and SigFox have emerged as leading technologies tailored for low-power, wide-area networks (LPWANs). Each of these technologies offers unique capabilities suited for specific applications, such as smart metering, asset tracking, and industrial IoT. Understanding the differences between NB-IoT, LoRa, and SigFox is essential for selecting the right solution for your IoT deployment.

This guide provides a detailed comparison of these technologies based on factors like range, data rate, power efficiency, and more. LoRa and Sigfox fall under non-cellular IoT technologies, while NB-IoT falls under the cellular IoT category.

NB-IoT (NarrowBand IoT)

NB-IoT is based on LTE Rel.13 specifications and is also known as LTE Cat-NB. Narrowband IoT (NB-IoT) is a cellular-based LPWAN technology standardized by the 3rd Generation Partnership Project (3GPP) under Release 13 in 2016. It operates on licensed spectrum, typically within LTE frequency bands, making it highly reliable and secure for industrial and commercial IoT applications. NB-IoT is designed to support a massive number of devices with low power consumption and efficient spectrum utilization.

Its background stems from the need for cellular IoT solutions that bridge the gap between traditional mobile broadband and low-power IoT connectivity. Key use cases include smart metering, environmental monitoring, and healthcare applications.

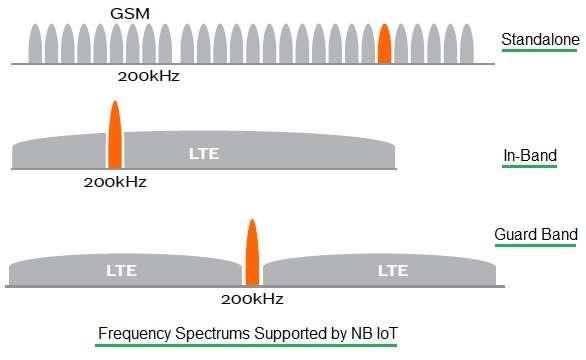

NB IoT Frequency Spectrum

Following are the features of NB-IoT technology:

  • Coverage: +20dB than LTE, covers a distance of less than 22 Km
  • Frequency spectrum: LTE In-band, Guard Band, Standalone
  • Signal Bandwidth: 180 KHz
  • Data Rate: 200 Kbps
  • Battery life: 10 years

LoRa

LoRa (Long Range) is a proprietary LPWAN technology developed by Semtech and operates on unlicensed ISM bands like 868 MHz (Europe) and 915 MHz (North America). Its communication protocol and system architecture are standardized by the LoRa Alliance through the LoRaWAN specification. Introduced in 2015, LoRa offers a robust, flexible solution for private network deployments and supports bi-directional communication with advanced encryption.

Its long range, low power capabilities make it suitable for applications like smart agriculture, industrial IoT, and asset tracking, where cost efficiency and network autonomy are critical.

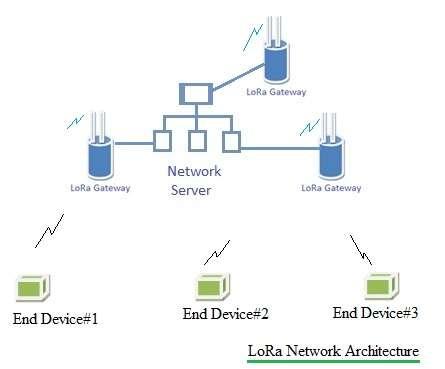

LoRa network architecture

Following are the features of LoRa technology:

  • Coverage: less than 14 Km
  • Frequency spectrum: Unlicensed Band
  • Signal Bandwidth: 125 KHz
  • Data Rate: 10 Kbps
  • Battery life: 10 years

SigFox

SigFox is a global LPWAN technology introduced in 2009 by the French company SigFox. It uses unlicensed Sub-GHz ISM bands (e.g., 868 MHz in Europe and 902 MHz in the US) and employs ultra-narrowband modulation for efficient and low-power communication. Unlike NB-IoT and LoRa, SigFox is based on a cloud-centric model where devices transmit small payloads to centralized servers, eliminating the need for complex gateways.

SigFox technology follows its proprietary standards, offering simplicity and affordability for IoT applications like smart logistics, environmental monitoring, and utility management. Its focus on minimal data rates and ultra-low energy consumption has made it a popular choice for cost-sensitive IoT solutions.

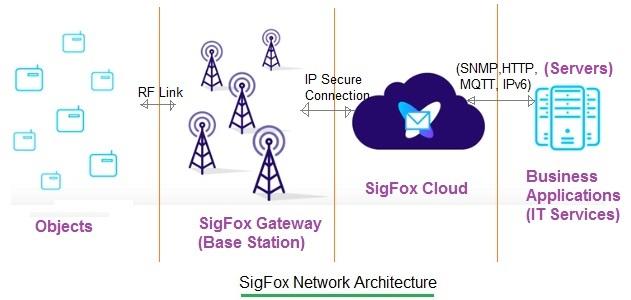

sigfox network architecture

Following are the features of SigFox technology:

  • Coverage: less than 17 Km
  • Frequency spectrum: Unlicensed Band
  • Signal Bandwidth: 0.1 KHz
  • Data Rate: 100 bps
  • Battery life: 10 years

Difference Between NB-IoT, LoRa, and SigFox

FeaturesNB-IoTLoRaSigfox
Technology typeCellular (Licensed spectrum)LPWAN (Unlicensed spectrum)LPWAN (Unlicensed spectrum)
FrequencyLicensed bands (e.g., LTE bands)Sub-GHz ISM bands (e.g., 868 MHz, 915 MHz)Sub-GHz ISM bands (e.g., 868 MHz, 902 MHz)
Data Rate250 bps to 250 kbps0.3 kbps to 50 kbpsUp to 100 bps
Power ConsumptionMedium to lowVery lowUltra low
Network TopologyStar (via cellular infrastructure)Star or hybridStar
LatencyLow to moderateModerateHigh
Deployment CostHigh (cellular infrastructure required)Low to moderate (gateway required)Low (cloud-based infrastructure)
ScalabilityHighHighModerate
Mobility SupportYes (cellular-based handover)LimitedNot available
Payload SizeUp to 1,600 bytesUp to 243 bytesUp to 12 bytes
SecurityStrong (LTE-grade encryption)Strong (AES encryption)Moderate
Use CasesSmart metering, industrial IoT, healthcareSmart cities, agriculture, asset trackingAsset tracking, environmental monitoring

Conclusion

NB-IoT, LoRa, and SigFox each cater to different IoT needs. NB-IoT is ideal for applications needing reliability, low latency, and high scalability in licensed spectrum environments. LoRa is preferred for flexible private networks with a balance between range and data rate. SigFox is best suited for ultra-low power, cost-sensitive, and low data rate applications.

By analyzing your specific requirements, such as coverage, scalability, and budget, you can choose the most suitable technology to power your IoT innovations.
