Understanding the Purpose of EMI Filters
Advertisement
The purpose of an Electromagnetic Interference (EMI) filter is to reduce or eliminate electromagnetic interference that can affect the performance of electronic devices or systems. EMI, also known as radio-frequency interference (RFI), refers to unwanted electromagnetic emissions or signals that can disrupt the operation of nearby electronic equipment or communication systems.

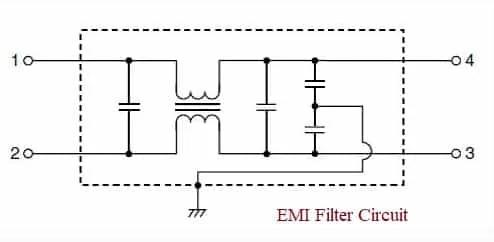

EMI filters are designed to attenuate or suppress electromagnetic interference by filtering out unwanted electromagnetic noise or signals from the power supply or signal lines of electronic devices. They typically consist of passive components such as capacitors, inductors, and resistors arranged in a configuration that selectively blocks or attenuates certain frequencies while allowing desired signals to pass through.
EMI Filter Purpose
The primary functions or purposes of an EMI filter include the following:
-
Protection: EMI filters protect sensitive electronic equipment from external electromagnetic interference sources such as radio transmissions, power line fluctuations, or electromagnetic fields generated by nearby equipment. By blocking or attenuating unwanted EMI, they help ensure the reliable operation of electronic devices in environments where electromagnetic disturbances are prevalent.
-
Compliance: Many regulatory standards and electromagnetic compatibility (EMC) requirements mandate the use of EMI filters in electronic equipment to ensure compliance with electromagnetic emission limits and susceptibility thresholds. EMI filters help electronic devices meet these regulatory requirements by reducing emissions and susceptibility to external interference.
-
Improved Performance: By minimizing electromagnetic interference, EMI filters can enhance the performance and reliability of electronic systems. They help prevent signal degradation, noise-induced errors, and malfunctions caused by EMI, thereby improving the overall quality and efficiency of electronic devices.
-
Noise Reduction: In addition to mitigating external interference, EMI filters can also reduce internal electromagnetic noise generated by electronic devices themselves. By suppressing noise generated within the device’s circuits, EMI filters help maintain signal integrity and prevent interference between different components or subsystems within the device.
Conclusion
Overall, EMI filters play a crucial role in ensuring the proper functioning and regulatory compliance of electronic devices and systems by mitigating the effects of electromagnetic interference and noise. They are widely used in a variety of applications, including consumer electronics, industrial equipment, telecommunications, medical devices, and automotive systems, where electromagnetic compatibility and reliability are essential considerations.
