OTDM vs OWDM: Understanding the Differences

optical otdm owdm multiplexing fiber optic

This page explores the differences between OTDM (Optical Time Division Multiplexing) and OWDM (Optical Wavelength Division Multiplexing) optical multi-channel systems. We’ll delve into their principles, advantages, and disadvantages.

Both OTDM and OWDM serve as optical multi-channel systems, multiplexing optical signals either in the time domain or the wavelength domain.

OTDM: Achieved in the time domain using ultra-short pulse transmission.
OWDM: Achieved in the wavelength domain using a large number of carrier wavelengths within the same fiber.

Refer to this tutorial on fiber optical communication for a more in-depth look.

OTDM: Optical Time Division Multiplexing

OTDM

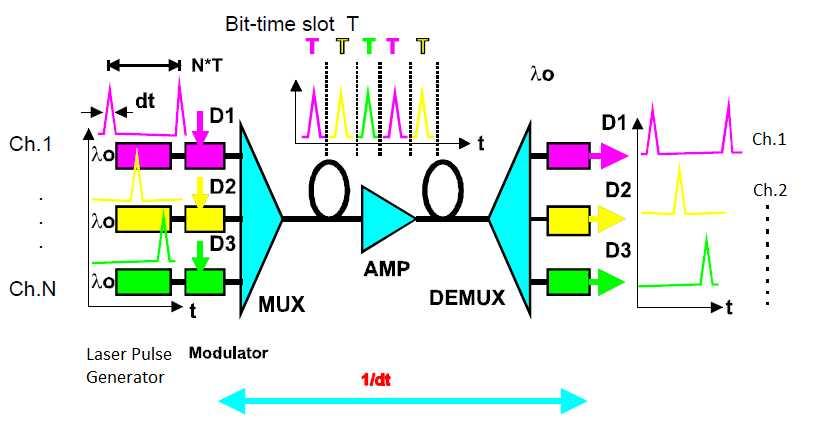

In OTDM, different data channels occupy distinct time slots, denoted as ‘T’, without overlapping. These slots are fully overlapped in the optical frequency domain. This time-domain separation ensures no crosstalk between channels.

OWDM: Optical Wavelength Division Multiplexing

OWDM

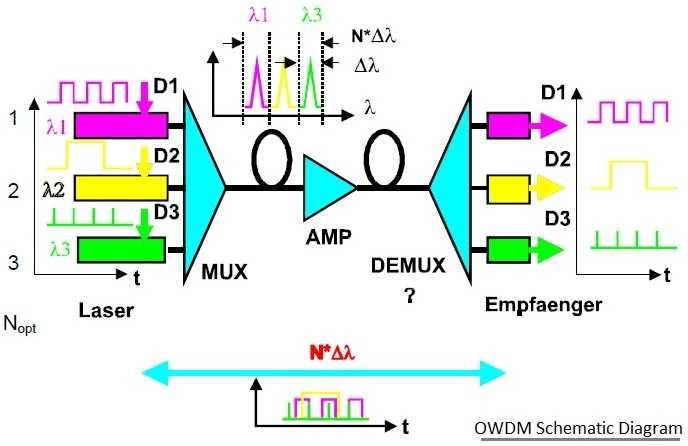

In OWDM, data channels are separated in the frequency domain. They are placed in non-overlapping frequency bands (Bch). All channels can fully overlap in the time domain without any crosstalk.

Check out this tutorial on DWDM system basics for more information.

OTDM vs OWDM: Key Differences

Factor	OTDM	OWDM
Full Form	Optical Time Division Multiplex	Optical Wavelength Division Multiplex
Advantages	Simple implementation. Simple components.
Disadvantages	Challenges in switching device components. Dispersion is a significant concern.	High component count. Wavelength conversion challenges.
Key Optical Components	Mode-locked lasers, all-optical DEMUX, dispersion compensation.	Optical DEMUX, narrowband filters, single frequency sources etc.
Application	Long and short distances.	Long distance, LANs.

Common Optical Components

Both OTDM and OWDM systems utilize the following components:

Optical Modulator and Demodulator
Optical Multiplexer and De-Multiplexer
Laser Pulse generator at the transmit end
Photodetector at the receive end
Optical Amplifier to enhance signal strength
Clock extraction at the receiver for information recovery
Wavelength filters to extract desired wavelengths

Refer to these links for basics on various Optical Components.

Advantages and Disadvantages of OWDM

Advantages:

Relatively low data rate per optical channel with modest requirements for dispersion and electronic speed.
Data format and timing of the channels are independent of each other.

Disadvantages:

Challenging requirements for the wavelength MUX and DEMUX regarding wavelength control, filter characteristics ( $Δλ~0.5-1.2$ nm), crosstalk, and thermal stability.
Large component count.
Highly stable optical frequency generation and small oscillator bandwidth (~MHz).
High total operational power ( $N_{opt} \times P_{op,channel}$ ; typically $200 \times 1$ mW/ch = $200$ mW) in the fiber can result in optical nonlinearities.
