Optical Transimpedance Amplifier (TIA): Operation and Applications

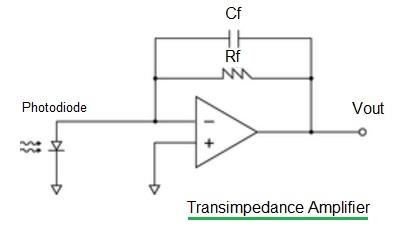

This page describes the basic operation of an Optical Transimpedance Amplifier (TIA). It explains the function and applications of this type of amplifier in the optical domain. The transimpedance amplifier typically consists of a photodiode and an operational amplifier, as illustrated in the figure below.

The primary function of a transimpedance amplifier is to convert the current produced by the photodiode into a differential voltage. One end of the photodiode is connected to the ground, while the other end is held at a potential equal to the virtual ground due to the inverting input of the amplifier.

Let’s delve into the operation or working principle of this optical transimpedance amplifier.

• When light falls on the photodiode, it generates a current proportional to the light input.
• The transimpedance amplifier forces this generated current to flow through a feedback resistor (Rf).
• This process results in the generation of a voltage at the amplifier output.

The relationship between the voltage (V), current (i), and feedback resistance (Rf) is defined by the following equation:

$V = i \cdot Rf$

Since the value of Rf is known, the current can be accurately estimated using the measured voltage.

Features of Transimpedance Amplifiers:

• High input current handling
• Low power dissipation
• Low input noise current (referred to input)

Applications of Optical Transimpedance Amplifiers

Optical Transimpedance Amplifiers find applications in various scenarios, including:

• Fiber Channel Configurations: Used in various fiber channel configurations such as 1X, 2X, 4X, 8X etc.
• 10 Gigabit Ethernet: Employed in 10 Gigabit Ethernet systems.
• SONET and SDH: Utilized in SONET (Synchronous Optical Networking) and SDH (Synchronous Digital Hierarchy) systems.
• 10GBase-LX4 Fiber Optic Network: Found in 10GBase-LX4 fiber optic networks.
