This page explores the advantages and disadvantages of M-LVDS (Multi-Level Differential Signaling), building on the basics of LVDS.

What is M-LVDS?

LVDS (Low Voltage Differential Signaling) was initially developed to provide high-speed communication in point-to-point applications. M-LVDS is an enhanced version of LVDS designed to support multipoint applications, similar to RS485.

Both LVDS and M-LVDS utilize differential signaling, which employs two wires to transmit data. Receivers detect data based on the voltage difference between the two complementary electrical signals. This approach minimizes emissions and enhances noise immunity.

M-LVDS interface

M-LVDS specifications are defined in the TIA/EIA-899 standard. Compared to LVDS, M-LVDS offers the following additional features:

  • Controlled transition times
  • Increased driver output strength
  • Extended common-mode range
  • Option of fail-safe receivers for bus idle conditions

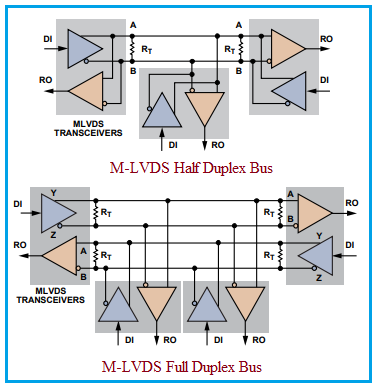

Both LVDS and M-LVDS support differential signaling with a low differential voltage swing. As illustrated above, M-LVDS supports both half-duplex and full-duplex topologies.

Benefits (Advantages) of M-LVDS

Here are the key benefits and advantages of using M-LVDS:

  • Multipoint Applications: Unlike LVDS, M-LVDS is specifically designed for multipoint applications, enabling communication among multiple devices on a single bus.
  • High Speed, Low Power: M-LVDS offers high-speed links with low power consumption, making it a superior choice compared to RS485 and CAN in certain applications.
  • Increased Load Capacity: M-LVDS uses a higher differential output voltage compared to LVDS, allowing for an increased load from the multipoint bus.
  • Enhanced Noise Immunity: M-LVDS supports an extended common-mode range compared to LVDS. This allows for additional noise in the multipoint topology, leading to increased noise immunity and reduced electromagnetic (EM) emissions.
  • Extended Distance: M-LVDS supports a maximum distance of approximately 20 to 40 meters, which is greater than that of LVDS.

Drawbacks (Disadvantages) of M-LVDS

Despite its advantages, M-LVDS also has some drawbacks:

  • Node Limitation: M-LVDS supports a limited number of nodes, up to 32, on a single bus.
  • Data Rate Limitations: M-LVDS typically supports data rates of around 100 to 200 Mbps, which is less than the data rates supported by LVDS (i.e., >1 Gbps).
