GDDR (Graphics Double Data Rate) and DDR (Double Data Rate) are both types of synchronous dynamic random-access memory (SDRAM) used in computer systems, but they serve different purposes. Essentially, DDR is the memory used by your CPU (Central Processing Unit) for general computing, while GDDR memory is used with your GPU (Graphics Processing Unit) to boost the performance of your graphics card. Both the CPU and GPU processors connect to the system using the PCI Express slot.
DDR Memory
DDR memory is a type of SDRAM commonly used as system memory (RAM) in computers, handling general-purpose computing tasks. It synchronizes with the CPU’s timing or clock signal. DDR memory doubles the data transfer rate compared to traditional SDRAM by transferring data on both the rising and falling edges of the clock signal.
There are two main types of SDRAM:
- SDR (Single Data Rate)
- DDR (Double Data Rate)

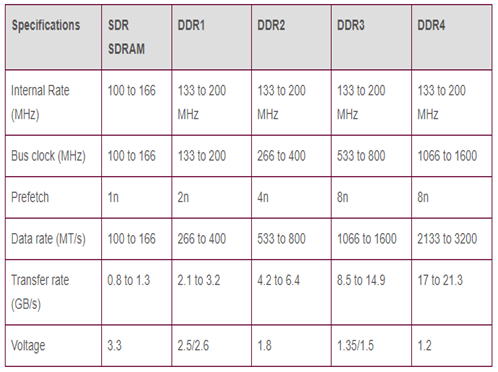

DDR memory comes in various generations like DDR, DDR2, DDR3, and DDR4. Each new generation brings improvements in speed and efficiency. The table above provides a comparison of these different DDR memory types.
GDDR Memory
GDDR is a specialized type of DDR memory designed specifically for graphics processing units (GPUs) in graphics cards. It’s optimized for graphics-intensive tasks, such as rendering complex images and textures in video games and other graphics applications. While GDDR shares some similarities with DDR, it often has unique features and optimizations tailored to the high bandwidth demands of graphics processing.
Different generations of GDDR exist, including GDDR1 to GDDR5, GDDR5X, GDDR6, and GDDR6X, each offering enhanced performance and bandwidth. Manufacturers like Samsung, Micron, ELPIDA, and Hynix produce GDDR memory in various sizes. The table above provides a comparison of different GDDR memory types.
Tabular Difference between GDDR and DDR Memory
The following table compares GDDR and DDR, highlighting the key differences between these memory types:
| Specifications | DDR | GDDR |
|---|---|---|
| Intended Use case | General purpose system memory | Specialized graphics processing unit (GPU) memory |
| Primary purpose | General computing tasks | Graphics rendering and processing |
| Data transfer rate | Varies by generations e.g. DDR4 | Varies by generations e.g. GDDR6 |
| Clock Speed | Moderate clock speeds | Higher clock speeds for increased bandwidth |
| Bandwidth efficiency | Emphasizes overall system performance | Prioritizes high bandwidth for graphics tasks |
| Generations | DDR, DDR2, DDR3, DDR4 etc. | GDDR3, GDDR4, GDDR5, GDDR5x, GDDR6 etc. |
| Bandwidth | Lower | Higher |
| Power consumption | High | Low |
| Heat dispersal requirements | Higher | Lower |
| Performance | Low | High |
| Capacity | Low | High |
| Cost | Less | More |
| Typical Applications | PCs, laptops, servers | Graphics cards, video game consoles |
Conclusion
In summary, the main difference between GDDR and DDR lies in their intended use cases. DDR is used as general system memory, while GDDR is designed for the specialized needs of graphics cards and other graphics processing units. The distinctions between DDR and GDDR include optimizations for different types of data access patterns, bandwidth requirements, and the specific demands of graphics-related tasks.
