Piconet vs. Scatternet: Bluetooth Network Types Explained

bluetooth
piconet
scatternet
network
wireless

This article explains the concepts of piconets and scatternets in Bluetooth networking, highlighting the key differences between these two network types.

Bluetooth Piconet

Bluetooth Piconet

A piconet is the fundamental building block of a Bluetooth network. In a piconet, devices operate in either a master or slave role. There are two primary configurations:

  • One master and one slave.
  • One master and multiple slaves.

The master device is responsible for determining the channel and phase used for communication within the piconet.

As illustrated in Figure 1 (above), a piconet is limited to a maximum of 8 devices. This comprises one master device and up to seven slave devices.

Bluetooth Scatternet

Bluetooth Scatternet

A scatternet is a Bluetooth network that consists of one or more interconnected piconets. Devices within a scatternet can function as a master or slave in different piconets simultaneously.

This network structure allows for a greater number of devices to share the same network area, which leads to more efficient use of available bandwidth.

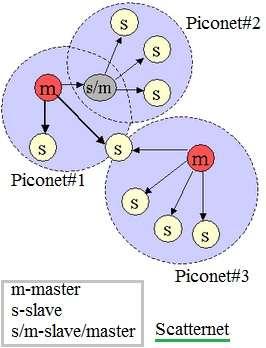

Figure 2 (above) depicts the structure of a Bluetooth scatternet. Since a scatternet is essentially an interconnection of multiple piconets, it can support more than the 8-device limit of a single piconet.

Piconet vs. Scatternet: Key Differences

The following table summarizes the key differences between piconets and scatternets in Bluetooth networks:

FeaturePiconetScatternet
Device RoleDevice functions as either master or slave.Device can function as master, slave, or both (master+slave) in different piconets.
Coverage AreaSmaller coverage area.Larger coverage area.
Node SupportSupports a maximum of 8 nodes.Supports more than 8 nodes.
Bandwidth Usage EfficiencyLess efficient use of available Bluetooth channel bandwidth.More efficient use of available Bluetooth channel bandwidth.
