Bluetooth Beacons for Indoor Positioning: Principles, Applications, and Advantages

bluetooth
beacon
indoor positioning
location service
ble technology

Bluetooth beacons are used as an indoor positioning method in Location-Based Services (LBS) to provide accurate location information in environments where GPS signals are weak or unavailable, such as inside buildings. Bluetooth beacons are small, wireless transmitters that use Bluetooth Low Energy (BLE) technology to broadcast signals to nearby Bluetooth enabled devices. These beacons continuously send out a unique identifier (ID). This ID can be picked up by compatible devices to trigger specific actions or provide location based information.

Bluetooth Beacons Working Principle

The following points demonstrate how bluetooth beacons work in determining location or position of a device:

  • Bluetooth beacons are strategically placed at various fixed locations within the environment (e.g., a shopping mall, airport, museum).

  • Each beacon continuously broadcasts a unique identifier (UUID) along with additional data such as major and minor values, which help in distinguishing different beacons.

  • Bluetooth enabled devices, such as smartphones or tablets, detect the signals emitted by the beacons when they come within range (typically up to 100 meters, but more often within 30 to 50 meters for higher accuracy).

  • The device measures the Received Signal Strength Indicator (RSSI) of the beacon signals. The RSSI value helps estimate the proximity of the device to the beacon.

  • Using the RSSI values from multiple beacons, the device can estimate its location through techniques such as trilateration or fingerprinting. In trilateration, the distances to multiple beacons are used to determine the device’s position. In fingerprinting, the signal patterns are matched against a pre-recorded database of signal strengths at known locations.

  • Based on the estimated position, the device can trigger context-aware actions, such as displaying location specific information, sending notifications, or guiding the user to a particular location.

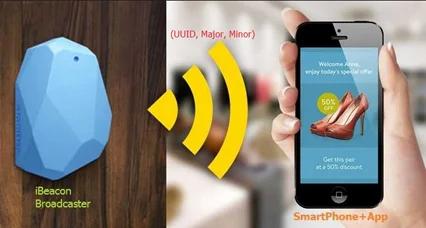

iBeacon technology

Applications of Bluetooth Beacons

The following bluetooth beacon applications are used in various domains:

  1. Retail: Beacons can guide shoppers to specific products, provide personalized offers and enhance the overall shopping experience.

  2. Museums and Exhibitions: Beacons can provide visitors with contextual information about exhibits as they move through the space.

  3. Airports and Transit Hubs: Beacons can assist travelers with navigation, gate information and real time updates.

  4. Workplace Management: Beacons can be used to track assets, manage space utilization and enhance employee safety and productivity.

  5. Events and Conferences: Beacons can help attendees navigate large venues, access session information and network with other participants.

Advantages of Bluetooth Beacons

Following are the benefits or advantages of Bluetooth Beacons:

  1. Beacons provide precise location information in indoor environments, where GPS signals are weak or nonexistent.

  2. Beacons are relatively inexpensive to deploy and maintain, making them a cost effective solution for indoor positioning.

  3. BLE technology ensures low power usage, allowing beacons to operate for extended periods on a single battery.

  4. Beacons are small, lightweight and easy to install without the need for extensive infrastructure changes.

  5. Modern smartphones and tablets typically support BLE, ensuring broad compatibility with a wide range of devices.

  6. Beacons enable personalized, context-aware services that can enhance user engagement and satisfaction.

Disadvantages of Bluetooth Beacons

Following are the drawbacks or disadvantages of Bluetooth Beacons:

  1. The effective range of beacons is relatively short (up to 100 meters), which may require a dense deployment of beacons for larger areas.

  2. BLE signals can be affected by physical obstructions (e.g., walls, furniture) and interference from other electronic devices, potentially reducing accuracy.

  3. Beacons require periodic battery replacement and firmware updates. For large deployments, this can be labor intensive.

  4. Continuous tracking and data collection by beacons can raise privacy issues, necessitating robust data protection measures and user consent.

Conclusion

Bluetooth beacons offer a powerful and flexible solution for indoor positioning within LBS, providing high accuracy, ease of deployment and enhanced user engagement. Despite challenges such as signal interference and privacy concerns, the advantages of BLE technology make beacons a popular choice for a wide range of applications, from retail and museums to airports and workplace management.
