This page covers the basics of Bowtie Antennas. It introduces the Bowtie Antenna Calculator and provides the formulas used for calculations. Links to other antenna calculators are also included.

Bowtie Antenna

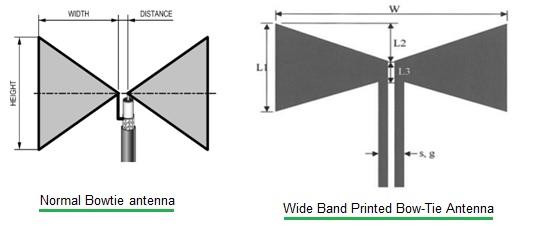

Figure 1: Typical Bowtie Antenna

Figure 1 shows a typical Bowtie Antenna. Due to its distinctive shape, it’s often referred to as a butterfly antenna.

There are several variations of Bowtie antennas, including:

  • Wideband Printed Bowtie antenna
  • Bowtie slot antenna
  • Double-sided triangular Bowtie antenna
  • Bowtie antenna microstrip fed
  • Slotted Bowtie patch antenna
  • CPW fed curved bow tie slot antenna

Bowtie Antenna Calculator Example

Inputs

Outputs

Here’s an example of how to use the Bowtie Antenna Calculator:

INPUT: Operating Frequency = 2400 MHz

OUTPUT:

  • Wavelength = 125 mm
  • BW (Bandwidth) = 792 MHz
  • Width = 46.875 mm
  • Distance = 2.5825 mm
  • Height = 31.25 mm

Formula/Equations Used in Bowtie Antenna Calculator

The following formulas are used in the Bowtie Antenna Calculator:

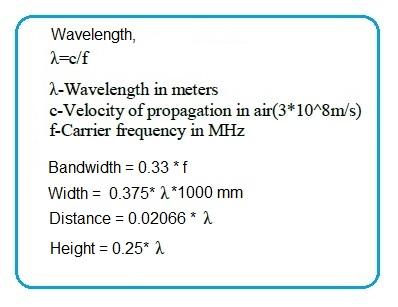

Bowtie Antenna Formula

This Bowtie Antenna calculator is a helpful tool for designing Bowtie Antennas.
