This page explores the pros and cons of the Luneburg Lens Antenna. It details the benefits and drawbacks associated with this type of antenna.

What is a Luneburg Lens?

Introduction:

  • A Luneburg lens is a spherically symmetric lens characterized by a variable index of refraction.
  • A Luneburg lens antenna is constructed using such a lens.
  • This antenna radiates a beam in any direction from a feed located opposite the beam.
  • The feed phase center is positioned either on the surface of the lens or a short distance away.

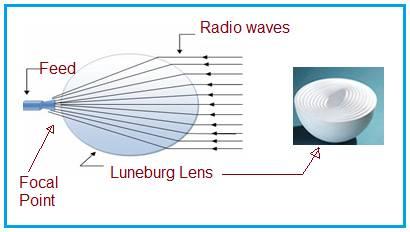

  • Luneburg lens antennas can be realized as either a full sphere or a hemisphere, as shown in the figure below.

Luneburg Lens Antenna Image alt: Luneburg Lens Antenna

  • The index of refraction when the feed is located on the outer surface of the sphere is expressed as follows:

    • n = [ 2 - (r/a)2 ] 0.5

    Where:

    • a = lens outer radius
    • r = lens inner radius

Benefits or Advantages of Luneburg Lens Antenna

The following are the benefits or advantages of a Luneburg Lens antenna:

  • Rapid Beam Scanning: It facilitates very rapid beam scanning by moving a lightweight feed around the sphere or by switching between multiple feeds.
  • Easy Steering: Steering the antenna is easy by moving the feed around the lens without physically rotating the entire antenna, unlike a parabolic dish antenna.
  • Multiple Feeds for Wide Directions: Due to its spherical symmetry, a single Luneburg lens can be used with several feeds looking in widely different directions, unlike parabolic reflectors where multiple feeds are used within a small angle of the optical axis.
  • Broadband Operation: It offers broadband operation.
  • Inexpensive Materials: It is manufactured using inexpensive dielectric materials.
  • No Active Elements: It does not use any active elements, making it less expensive.

Drawbacks or Disadvantages of Luneburg Lens Antenna

The following are the drawbacks or disadvantages of a Luneburg Lens antenna:

  • Feed Blockage: While it can generate multiple beams by feeding the lens from various places, there is a restriction due to blockage caused by other feeds or support structures.
  • Large Size: It tends to be large in size.
  • Dielectric Losses: It incurs relatively large dielectric losses.
  • Complex Fabrication: It is complex to fabricate.
