Helical Antenna: Advantages and Disadvantages

helical antenna
antenna
rf
vhf
uhf

This page explores the advantages and disadvantages of helical antennas. It covers the benefits and drawbacks of using helical antennas, along with a basic introduction to what they are.

What is a Helical Antenna?

Introduction: A helical antenna utilizes a helix-shaped radiating element. These antennas are commonly used at VHF and UHF frequencies where circular polarization is desired.

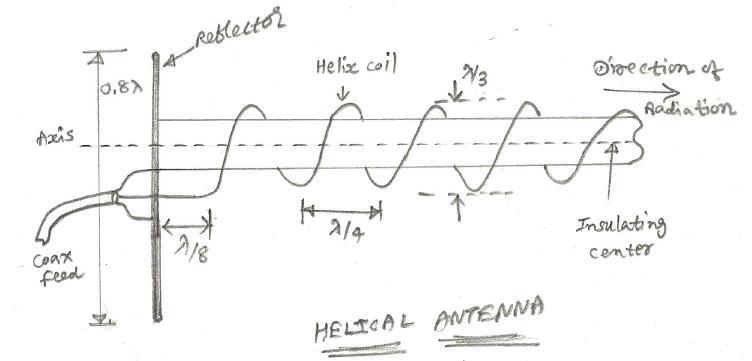

The helix is typically supported by a ground plane, as illustrated below:

Helical Antenna

Helical antennas support two primary modes of radiation:

  • Normal Mode: Radiation is perpendicular to the axis of the helix.
  • Axial Mode: Radiation occurs in the axial direction (along the helix’s axis).

A helical antenna with circular polarization can effectively receive both horizontally and vertically polarized waves.

Applications of Helical Antennas

Helical antennas find use in various applications:

  • Transmission and reception of VHF signals through the ionosphere.
  • Satellite communications and radiometry applications.
  • Communication between the Earth and the Moon.

Advantages (Benefits) of Helical Antennas

Here are the key advantages of using a helical antenna:

  • Simple Design: Helical antennas are relatively straightforward to design and manufacture.
  • Polarization Compatibility: Due to their circular polarization, they can effectively receive signals from both horizontal and vertical polarized antennas.
  • Broadband Applications: They offer a wider bandwidth, making them suitable for broadband applications.
  • HF/VHF Usage: Can be used for transmission and reception at HF/VHF frequencies.
  • High Directivity: They offer higher directivity, focusing the signal in a specific direction.
  • Robust Construction: Helical antennas are generally robust and durable.

Disadvantages (Drawbacks) of Helical Antennas

Despite their advantages, helical antennas also have some drawbacks:

  • Large Size: They tend to be large, requiring more space for installation.
  • Decreased Efficiency with More Turns: As the number of turns increases, the efficiency decreases. Maximum efficiency (around 80%) is typically achieved with 3 to 4 turns.
  • Higher Cost: They can be more expensive compared to some other antenna types.
