Cassegrain Feed Antenna: Function and Basics

antenna
cassegrain feed
reflector antenna
waveguide
microwave device

This page explains the function and basics of a Cassegrain feed, a common configuration used in antenna systems. As you likely know, a parabolic dish antenna typically consists of a parabolic dish and a horn antenna placed at the focal point.

There are several different configurations for the placement of the horn antenna. One of the most popular arrangements is shown in Figure 1. A waveguide feeds the horn placed at the focal point. The parabolic dish curves around the horn, which acts as a reflector.

reflector antenna

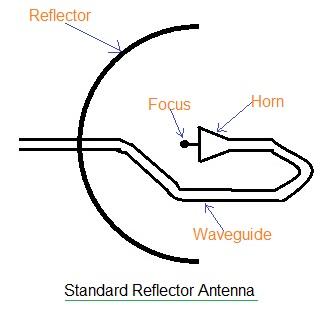

Fig.1 Simple reflector antenna

A popular method for feeding a parabolic antenna involves placing a second reflector at the focal point instead of the horn. The horn’s position is then moved to the center of the larger parabolic dish.

cassegrain feed antenna

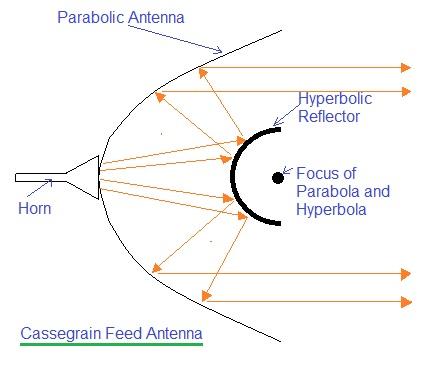

Fig.2 Cassegrain Feed antenna

As illustrated in Figure 2, during transmission, electromagnetic (EM) radiation from the horn is directed toward the smaller reflector first. The smaller reflector then reflects the energy toward the larger dish. The large dish, in turn, radiates the signal in parallel beams. This entire arrangement is known as a Cassegrain feed.

Advantages of Cassegrain Feed

The Cassegrain feed offers several advantages:

  • The waveguide line is short.
  • Radial bends in the waveguide are no longer necessary.
  • Due to the above, the Cassegrain arrangement results in less attenuation and an improved noise figure.

Larger Earth station antennas often utilize the Cassegrain feed arrangement.
