This page provides MATLAB source code for PSK (Phase Shift Keying) modulation. The output plots and mathematical equations are also discussed.

PSK modulation is a digital modulation technique where the phase of the carrier signal varies according to the digital binary data (1 or 0).

Introduction:

  • Binary logic-1 typically represents a 180-degree phase shift of the carrier.
  • Binary logic-0 represents a 0-degree phase shift.

This type of PSK is also known as BPSK (Binary Phase Shift Keying).

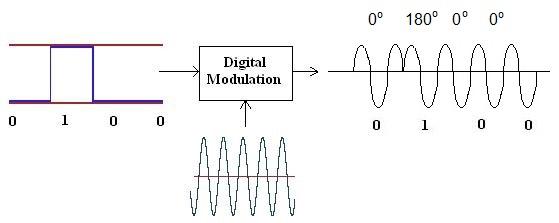

PSK modulation

Fig.3 PSK Modulation

Figure 1 depicts the PSK modulation process. The inputs are digital binary data and an analog carrier signal, while the output is the analog PSK modulated signal.

PSK is a power-efficient system but offers lower bandwidth efficiency compared to other modulation schemes. Variants of PSK, such as 16-QAM, 64-QAM, and 256-QAM, are widely used in wireless communication for high data rate modulation.

Also, see the difference between ASK, FSK, and PSK modulation types.

PSK Matlab Code

clear;
clc;

b = input('Enter the Bit stream \n ');
%b = [0 1 0 1 1 1 0];
n = length(b);
t = 0:.01:n;
x = 1:1:(n+1)*100;

for i = 1:n
    if (b(i) == 0)
        b_p(i) = -1;
    else
        b_p(i) = 1;
    end

    for j = i:.1:i+1
        bw(x(i*100:(i+1)*100)) = b_p(i);
    end
end

bw = bw(100:end);
sint = sin(2*pi*t);
st = bw.*sint;

subplot(3,1,1)
plot(t,bw)
grid on ;
axis([0 n -2 +2])
subplot(3,1,2)
plot(t,sint)
grid on ;
axis([0 n -2 +2])
subplot(3,1,3)
plot(t,st)
grid on ;
axis([0 n -2 +2])

Input and Output of PSK Modulation Matlab Source Code

Run the downloaded PSKModulation.m file after unzipping the folder. Provide the input as prompted:

PSK matlab code input

After entering the input and pressing the “ENTER” key, you will see the output MATLAB image as shown below:

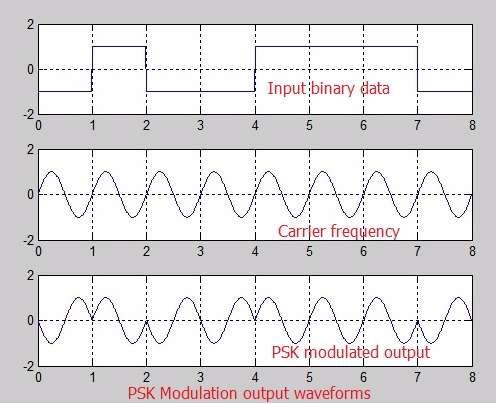

PSK matlab code output
