FIR Digital Filter Design using Triangular Window in MATLAB

This article provides MATLAB source code for implementing FIR low-pass and high-pass filters using the triangular window method.

FIR Low Pass Filter MATLAB Code

clc;
close all;
clear all;
format long;
rp=input('enter the passband ripple:(default:0.04)');
rs=input('enter the stopband ripple:(default:0.02)');
fp=input('enter the passband frequency:(default:1500)');
fs=input('enter the stopband frequency:(default:2000)');
f=input('enter the sampling frequency:(default:8000)');

wp=2*(fp/f);
ws=2*(fs/f);

num=-20*log10(sqrt(rp*rs))-13;
dem=14.6*(fs-fp)/f;
n=ceil(num/dem);
n1=n+1;

if(rem(n,2)~=0)
    n1=n;
    n=n-1;
end;

y=triang(n1); %Lowpass filter
b=fir1(n,wp,y);

[h,o]=freqz(b,1,256);
m=20*log10(abs(h));

subplot(2,1,1);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of LPF ----');
grid on;


## FIR High Pass Filter MATLAB Code

```matlab
%Highpass filter
b=fir1(n,wp,'high',y);

[h,o]=freqz(b,1,256);
m=20*log10(abs(h));

subplot(2,1,2);
plot(o/pi,m);
ylabel('gain in db---->');
xlabel('Normalised frequency---->');
title('FIR filter using Triangular window of HPF ----');
grid on ;

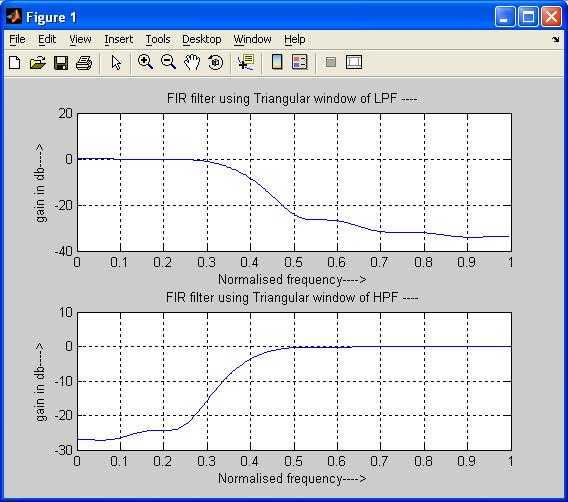

Output Plot

FIR LPF HPF triangular window matlab
