FIR filter Python code | FIR python script
This FIR filter python code script covers simulation of FIR filter of Low pass type. The output plots of this FIR python script are also mentioned.
Introduction : FIR filter uses only current and past input digital samples to obtain a current output sample value. It does not utilize past output samples.
Simple FIR equation is mention below.
y(n)= h(0)x(n) + h(1)x(n-1) + h(2)x(n-2) + h(3)x(n-3) + h(4)x(n-4)
Refer FIR vs IIR filter for more information.
FIR filter python code
import matplotlib.pyplot as plt
import scipy.signal as sig
import numpy as np
from math import pi
plt.close('all')
N = 20
fc = 100
Fs = 1000
w_c = 2 *fc/Fs
t = sig.firwin(N, w_c)
[w, h] = sig.freqz(t, worN = 2000)
w = Fs*w/(2*pi)
h_db = 20 * np.log10(abs(h))
plt.figure()
plt.plot(w, h_db)
plt.title('FIR filter response')
plt.xlabel('Frequency (Hz)')
plt.ylabel('Magnitude (dB)')
plt.show()
import scipy.signal as sig
import numpy as np
from math import pi
plt.close('all')
N = 20
fc = 100
Fs = 1000
w_c = 2 *fc/Fs
t = sig.firwin(N, w_c)
[w, h] = sig.freqz(t, worN = 2000)
w = Fs*w/(2*pi)
h_db = 20 * np.log10(abs(h))
plt.figure()
plt.plot(w, h_db)
plt.title('FIR filter response')
plt.xlabel('Frequency (Hz)')
plt.ylabel('Magnitude (dB)')
plt.show()

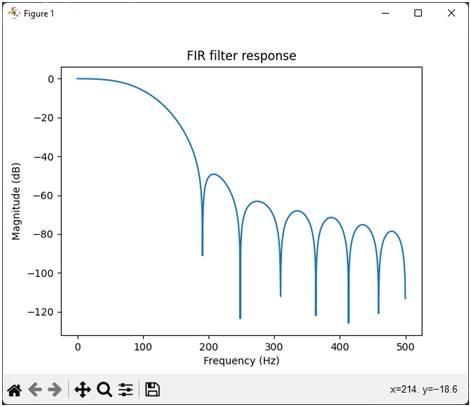

FIR python Output plots
Following are the plots of above FIR python code.
