The AMD Zen architecture marks a significant leap in AMD’s processor design, offering improved performance, efficiency, and scalability. Zen is used in AMD’s Ryzen, Threadripper, and EPYC product lines, catering to desktops, high-performance computing, and server markets. Let’s explore the key features and some common interview questions about AMD Architecture.

Key Features

  • High Performance: Improved instructions per cycle (IPC) and multi-threading capabilities.
  • Energy Efficiency: Optimized power consumption with advanced power management features.
  • Scalability: Designed to scale across a range of products from desktops to servers.
  • Advanced Manufacturing Process: Typically built on a 14nm, 7nm, or 5nm process, depending on the generation.

AMD Architecture Modules

Let’s understand the functions of different modules in the AMD architecture:

  • Core Complex (CCX): A fundamental building block of the Zen architecture. Each CCX typically contains 4 CPU cores with a shared L3 cache. Multiple CCXs can be combined within a single chip.

  • CPU Core:

    • Integer Execution Unit: Handles arithmetic and logic operations.
    • Floating Point Unit (FPU): Manages operations involving floating-point numbers, essential for scientific and engineering applications.
    • Instruction Fetch: Fetches instructions from memory and places them in the pipeline.
    • Instruction Decode: Decodes fetched instructions into operations the execution units can understand.
    • Execution Pipeline: Executes instructions through multiple stages, typically a 14-stage pipeline in Zen.
  • Cache System:

    • L1 Cache: Split into L1 instruction cache (I-Cache) and L1 data cache (D-Cache), providing fast access to frequently used data and instructions.
    • L2 Cache: Larger and slower than L1, dedicated to each core.
    • L3 Cache: Shared among the cores within a CCX, enhancing data sharing and reducing latency.

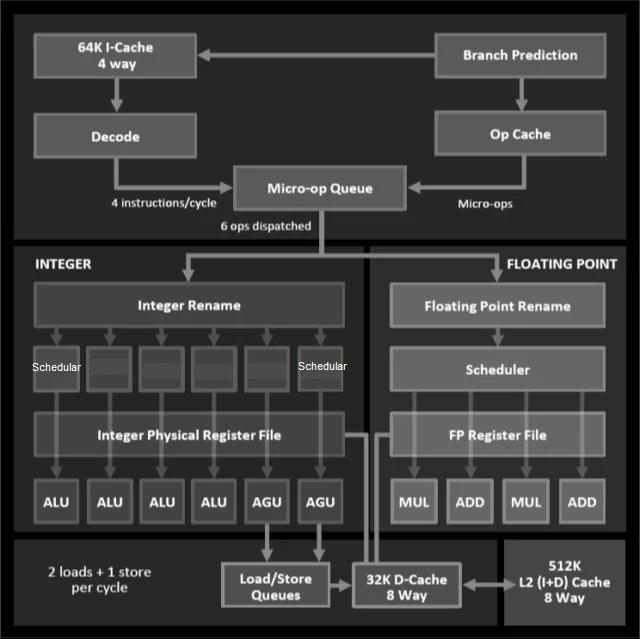

AMD Zen Architecture

  • Infinity Fabric: A scalable, high-bandwidth interconnect used to connect different components within the processor such as CCXs, memory controllers, and I/O. It enables communication between multiple dies in multi-chip modules (MCM).

  • Memory Controller: Integrated memory controller supports DDR4 or DDR5 memory, providing high bandwidth and low latency memory access. Includes features like ECC (Error-Correcting Code) for improved reliability.

  • Branch Prediction: Advanced branch prediction unit helps to improve the flow of instruction execution by predicting the outcome of branches, reducing stalls.

  • Load-Store Unit: Manages the flow of data between the CPU and memory, optimizing data access and storage operations.

  • Floating Point Scheduler: Coordinates floating point operations, ensuring efficient execution and resource utilization.

  • Integer Scheduler: Manages integer operations, optimizing instruction throughput and performance.

  • Micro-Op Cache: Stores decoded micro-operations to reduce the need for re-decode, improving efficiency and reducing power consumption.

  • SMT (Simultaneous Multi-Threading): Allows each core to run multiple threads simultaneously, improving utilization and performance in multi-threaded applications.

  • Power Management: Advanced power management features, including dynamic frequency and voltage scaling, ensure efficient energy use and thermal management.

  • Security Features:

    • Secure Memory Encryption (SME): Protects data in memory by encrypting it.
    • Secure Encrypted Virtualization (SEV): Enhances virtualization security by encrypting virtual machine memory.
    • Control Flow Integrity (CFI): Protects against control-flow hijacking attacks.

Variants of AMD

  • Zen 1 (Zen): Introduced in the Ryzen 1000 series, Threadripper, and first-generation EPYC processors. Built on a 14nm process, featuring significant improvements in IPC and power efficiency compared to previous AMD architectures.

  • Zen 2: Introduced in the Ryzen 3000 series, second-generation Threadripper, and EPYC Rome processors. Built on a 7nm process, offering further improvements in performance, power efficiency, and core density.

  • Zen 3: Introduced in the Ryzen 5000 series, third-generation Threadripper, and EPYC Milan processors. Built on an enhanced 7nm process, with a unified L3 cache per CCD (Core Complex Die) for reduced latency and improved performance.

  • Zen 4: Built on a 5nm process with further performance and efficiency enhancements.

Conclusion

The AMD Zen architecture represents a modular, scalable, and highly efficient design tailored for a wide range of computing needs, from consumer desktops to high-performance servers. Its core complex design, advanced cache system, Infinity Fabric interconnect, and comprehensive power management make it a robust choice for modern computing applications.

Interview Questions and Answers on AMD Architecture

Question 1: Explain the key features of AMD’s Zen architecture and how it differs from previous AMD architectures.

Answer 1: Check out “Difference between AMD Zen Versions” for a comprehensive comparison.

Question 2: What is the AMD Infinity Fabric, and how does it benefit AMD’s processor architectures?

Answer 2: The AMD Infinity Fabric is a high-speed interconnect architecture used in AMD processors to link various components within the system. It plays a crucial role in enhancing the performance, scalability, and efficiency of AMD’s processor architectures. Here are the key benefits of the Infinity Fabric:

  • High Bandwidth
  • Scalability
  • Low Latency
  • Flexibility
  • Coherent Memory Access
  • Power Efficiency

Question 3: Describe the improvements introduced in AMD’s Zen 2 architecture compared to the original Zen architecture.

Answer 3: AMD’s Zen 2 architecture introduced several improvements over the original Zen architecture, enhancing performance, efficiency, and scalability. The key improvements include:

  • 7nm Manufacturing Process
  • Increased IPC (Instructions Per Cycle)
  • Larger L3 Cache
  • Double Floating-Point Throughput
  • Improved Memory Support
  • Enhanced Infinity Fabric
  • Security Enhancements
  • Energy Efficiency
