The AMD Zen architecture has undergone several iterations since its inception, with each version bringing enhancements in performance, efficiency, and feature set. The main versions of the Zen architecture are Zen, Zen+, Zen 2, Zen 3, and Zen 4.

The following table mentions the key differences between AMD Zen Architecture versions Zen 1, Zen 1+, Zen 2, Zen 3, and Zen 4.

FeaturesZen 1Zen 1+Zen 2Zen 3Zen 4
Year of IntroductionMarch 2017April 2018July 2019November 2020Sep. 2022
Process Technology14nm FinFET12nm FinFET7nm FinFETEnhanced 7nm FinFET5nm FinFET
IPC improvementBaseline~ 3 - 5% over Zen~ 15% over Zen+~ 19% over Zen 2Expected further gains
Core complex (CCX)4 cores per CCX4 cores per CCX4 cores per CCXUnified 8-core CCX8 cores per CCX
Cache improvementsShared L3 per CCXReduced latencyLarger L3, improved hierarchyUnified larger L3Expected enhancements
Floating point performanceBaselineImproved latency2x performance per coreEnhanced throughputFurther enhancements
SMTYesYesYesImprovedExpected improvements
Memory supportDDR4DDR4DDR4, PCIe 4.0DDR4, PCIe 4.0DDR5, LPDDR5, PCIe 5.0
Security featuresBaselineImprovedEnhanced (Spectre/Meltdown mitigations)EnhancedFurther enhancements
Power efficiencyImproved over previous AMD architecturesImproved over ZenSignificant improvementsFurther improvedExpected improvements
Thermal managementBaselineImprovedEnhancedImprovedExpected enhancements

The AMD Zen architecture has seen consistent improvements with each new generation, focusing on increasing performance, efficiency, and feature set. The transition from Zen to Zen 4 shows a clear trajectory of technological advancements, especially in manufacturing processes, IPC gains, cache hierarchy, memory support and power efficiency. Each iteration of the Zen architecture builds on the strengths of its predecessor, making AMD processors increasingly competitive in the high-performance computing market.

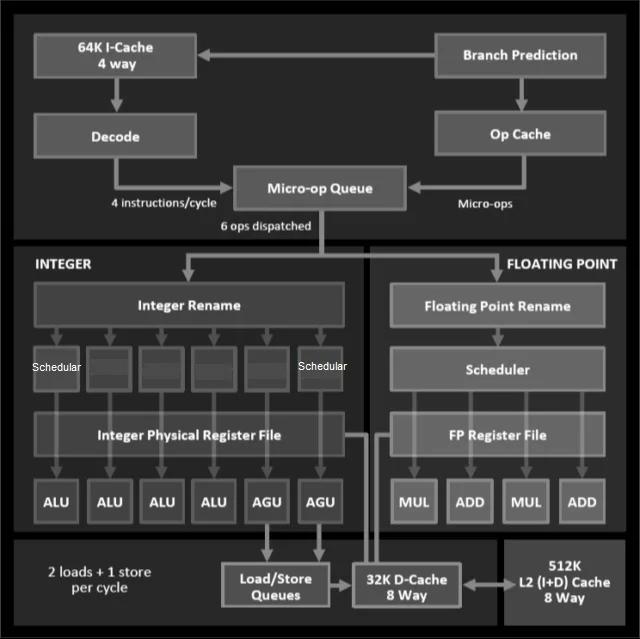

AMD Zen Architecture
