Path loss is a critical concept in wireless communication that describes the attenuation or reduction in signal strength as it travels from a transmitter to a receiver over a distance through the propagation medium. It’s affected by factors like distance, frequency, antenna characteristics, and the surrounding environment.

Accurate path loss calculations are essential for designing various wireless systems, including cellular networks, Wi-Fi, and satellite links.

The calculation of path loss can be done using several models, with the Friis transmission equation and the log-distance path loss model being the most common.

Importance of Free Space Path Loss Calculations

Free Space Path Loss (FSPL) calculators and formulas are essential tools in wireless communication for several reasons:

  • Fundamental Benchmark: They provide a benchmark for estimating signal attenuation in ideal, unobstructed environments. This helps with the initial design and planning of wireless networks.
  • Distance Determination: They help determine the maximum distance over which signals can reliably propagate without additional amplification. This is crucial for establishing coverage areas and optimizing transmitter power levels.
  • Link Budget Analysis: FSPL calculations are a key component in link budget analysis. This allows engineers to assess the overall gain and loss in a communication system, ensuring reliable and efficient signal transmission.

Free Space Path Loss Formula

The Friis Transmission Equation is a basic model for calculating path loss. It’s suitable for scenarios where there is a clear line of sight (LOS) between the transmitter and receiver.

The Free Space Path Loss formula is as follows:

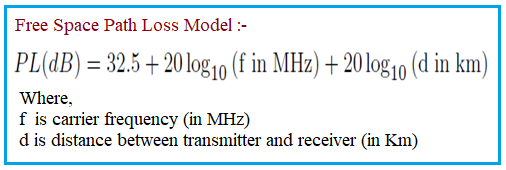

Free Space Path Loss Model Formula

Other path loss models include the log-distance path loss model, Okumura-Hata and COST231 model, ITU-R P.529 model, Ray Tracing, and other propagation models.

Free Space Path Loss Calculator

Inputs

Outputs

To calculate free space path loss, you need to provide the frequency and distance as input parameters.

EXAMPLE:

  • INPUTS: Frequency = 900 MHz, distance = 4 km
  • OUTPUTS: Path Loss = 103.62 dB

Conclusion

The Free Space Path Loss formula calculates the attenuation of a wireless signal as it propagates through an ideal, unobstructed environment.

Refer to the RF Budget Calculator with the image and equations mentioned below:

rf link budget

rf link budget equation
