This page provides information on Eb/No and BER (Bit Error Rate), including an Eb/No calculator and BER calculator. It explains the basics of these concepts.
As we know, C/N stands for Carrier-to-Noise ratio, and Eb/No stands for bit energy to noise power density ratio.
N (Noise) here is equal to KTB, where:
- K is Boltzmann’s constant (1.38 x 10-23)
- T is the noise temperature
- B is the bandwidth.
Eb/No Calculator

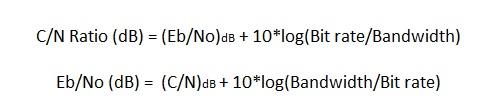

This calculator takes Eb/No, Bit rate, and Bandwidth as inputs and calculates C/N.
Example:
INPUTS: Eb/No = 11.1 dB ; Bit rate = 0.256 Mbps BW = 0.128 Mbps (128 Kbps)
OUTPUT: C/N = 14.1 dB
C/N to Eb/No Calculator
This calculator takes C/N, Bit rate and Bandwidth and calculates Eb/No.
Example:
INPUTS: C/N = 14.1 dB ; Bit rate = 0.256 Mbps BW = 0.128 Mbps (128 Kbps) OUTPUT: Eb/N0 = 11.1 dB
BER (Bit Error Rate) Calculator
Example:
INPUTS: Number of erroneous bits = 20; Total bits = 1e8 OUTPUT: BER = 2e-7
Understanding Eb/No, C/N, and BER
As explained above, Eb/No, C/N, and BER (Bit Error Rate) parameters are interchangeably used for measuring the performance of a wireless and wired system.
- Higher the Eb/No ratio and C/N ratio, the better the system performs under noisy conditions.
- BER stands for Bit Error Rate. It’s the ratio of the number of bits received in error to the total number of bits transmitted.
- The lower the BER, the better the system’s performance.
Usually, system designers and engineers use an Eb/No vs. BER curve to find the BER from the Eb/No value for different modulation coding schemes.
