Return Loss (RL) and Voltage Standing Wave Ratio (VSWR) are both essential measurements used to quantify the efficiency of power transfer in Radio Frequency (RF) and Microwave systems. While related, they represent the same underlying information in different ways.

Return Loss (RL) in dB

Return Loss is a measure of the power reflected back from a discontinuity (e.g., a connector, an impedance mismatch, or a component) within an RF system. It’s expressed in decibels (dB). The Return Loss formula is as follows:

RL (dB) = -20 * Log10(|Γ|)

Where:

  • Γ (Gamma) represents the reflection coefficient, which is the complex ratio of the reflected wave to the incident wave.

Higher values of Return Loss (in dB) indicate better performance, signifying that less power is being reflected back.

VSWR: Voltage Standing Wave Ratio

Voltage Standing Wave Ratio (VSWR) offers another way to express the same information as Return Loss, but in a different format. It’s defined as the ratio of the maximum amplitude of the standing wave to the minimum amplitude. The VSWR formula is:

VSWR = (1 + |Γ|) / (1 - |Γ|)

VSWR provides a straightforward way to describe how much power is being reflected versus transmitted. VSWR values typically range from 1 to infinity.

  • VSWR = 1: Indicates a perfect match (no reflection).
  • VSWR = Infinite: Indicates complete reflection (all power reflected).

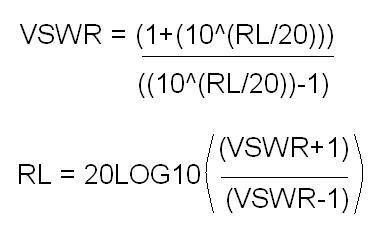

VSWR and Returnloss formula VSWR and Returnloss formula

Relationship Between Return Loss and VSWR

Return Loss (RL) and Voltage Standing Wave Ratio (VSWR) are mathematically related. You can convert between RL and VSWR using the formulas provided above.

Return Loss to VSWR Calculator

Inputs

Outputs

The following calculator can be used to convert Return Loss (in dB) to its corresponding VSWR value.

VSWR Calculation Example:

  • Return Loss in dB = 18
  • VSWR = 1.28

VSWR to Return Loss Calculator

Inputs

Outputs

The following calculator can be used to convert VSWR to its corresponding Return Loss (RL) value.

Return Loss Calculation Example:

  • VSWR = 1.1
  • Return Loss in dB = 26.44

Conclusion

In summary, RL and VSWR formulas and calculators are valuable tools that enhance the efficiency, accuracy, and consistency of RF engineering tasks such as measurement, analysis, troubleshooting, and system design. They allow engineers to easily quantify and understand power transfer efficiency in their RF systems.
