RF Cable Loss Calculator

rf
cable
loss
calculator
coaxial

This RF Cable Loss calculator determines the loss in coaxial cables. The formula used in this calculator is also explained below.

Inputs

Outputs

EXAMPLE:

  • INPUTS: Frequency = 2500 MHz, K1 = 0.11694, K2 = 0.00036, CLF = 0.12, L = 150ft
  • OUTPUTS: RF Cable Loss = 6.93 dB/100ft, 10.4 dB/150 ft

RF Coaxial Cable Loss Formula

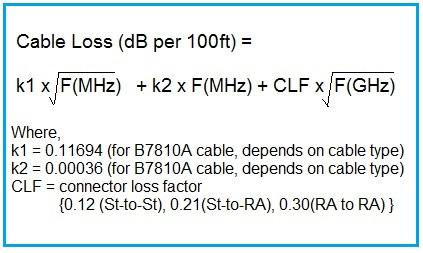

The following formula is used to calculate RF coaxial cable loss:

rf cable loss formula

The cable loss consists of conductor wire loss, insulation loss, and connector loss.

As mentioned in the equation:

  • Conductor loss (K1) is related to the square root of the frequency.
  • Insulation loss (K2) is related to the frequency.
  • Connector loss is related to the connectors used in the cable. Connectors can be either straight type or right-angled type.
