In RF and microwave systems, power levels are commonly expressed in logarithmic units such as dBm, dBµW, and dBµV to simplify calculations and represent large variations in signal strength effectively. These units help in gain/loss calculations in amplifiers, attenuators, and transmission lines.

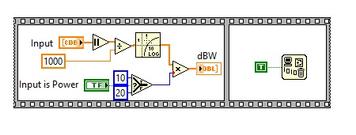

Power Conversion Formulas

  1. dBm (Decibels relative to 1 milliwatt)
  • Pdbm = 10 * Log10 (Pmw/1mW)

Example 1 mW = 0 dBm

  1. dBµW (Decibels relative to 1 microwatt)
  • PdBµW = 10 * log10(PµW/1µW)

  • Relation

  • PdBµW = PdBm + 30

  1. dBµV (Decibels relative to 1 nicrovolt)
  • PdBµV = 20 log10(VµV/1µV)

  • This depends on impedance (Z), typically 50 Ohm or 75 Ohm in RF Systems.

  1. Watt to Milliwatt Conversion
  • PmW = Pw * 1000

Example 1 W = 1000 mW

  1. dBm to Watt conversion
  • Pw = 10^(PdBm/10) x 10^-3

Example 30 dBm = 1 Watt

Conclusion

Power unit conversions are crucial in RF and microwave engineering for accurately measuring and comparing signal strengths. The logarithmic units dBm, dBµW, and dBµV simplify calculations involving amplification, attenuation, and transmission losses. Understanding these conversions ensures effective system design, proper impedance matching, and accurate power level interpretation in communication and radar applications.
