Radar Range Resolution Calculator

radar
range resolution
pulse width
radar system
calculator

Inputs

Outputs

This page provides a Radar Range Resolution calculator.

EXAMPLE:

  • INPUT: Pulse width = 5 µs
  • OUTPUT: Range resolution = 750 m

Radar Range Resolution Equation

Another important parameter in a radar system is its range resolution. It is directly related to the pulse width, as described by the equation below.

Range resolution represents the smallest distance between two distinct targets that the radar can differentiate. If targets are closer than this minimum distance, the radar won’t be able to tell them apart; they’ll appear as a single target.

The range resolution can be improved through a process known as pulse compression. FM chirp is a common compression method where the radar carrier frequency is swept over a fixed range using a ramp function.

The following equation/formula is used for the Radar Range Resolution calculator:

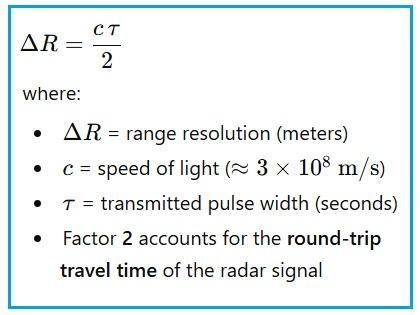

radar range resolution equation
