This page covers the Slot Antenna calculator. It mentions the Slot Antenna Formula with example calculations to use the slot antenna calculator.

What is a Slot Antenna?

A slot antenna is a type of antenna that consists of a rectangular or circular slot cut into a conducting surface, typically a metal sheet or waveguide. It operates based on Babinet’s principle, where a slot in a conducting plane behaves similarly to a dipole antenna. The electromagnetic waves radiate from the slot, producing an efficient radiation pattern.

There are different types of slot antennas which include Rectangular, Circular, Slotted Waveguide Antenna, and Tapered Slot Antenna (Vivaldi Antenna). The applications include:

  • Radar systems
  • Aircraft and missile communication
  • Wireless communication systems
  • Microwave imaging
  • Satellite communications

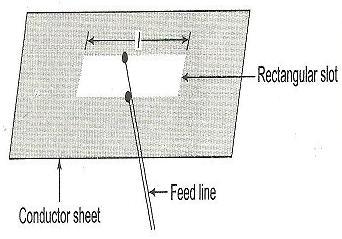

slot antenna

The following are the basic specifications considered in the selection of a slot Antenna:

  1. Frequency Range: The operating frequency must match the application (e.g., UHF, microwave, or millimeter-wave bands).
  2. Slot Dimensions: The length and width of the slot determine the resonance frequency and radiation characteristics.
  3. Substrate Material (For Printed Slot Antennas): Dielectric constant and loss tangent affect antenna efficiency and bandwidth.
  4. Polarization: Can be linear, circular, or elliptical depending on the slot shape and feeding technique.
  5. Radiation Pattern: Typically omnidirectional or directional based on the slot orientation and ground plane.
  6. Gain: Measured in dBi, slot antennas usually have moderate gain (3–10 dBi), but higher gain is achievable with arrays.
  7. Bandwidth: Affects data transmission capacity; broadband designs like Vivaldi slot antennas provide wider bandwidth.
  8. Impedance Matching: Typically designed for 50 Ohm impedance to ensure minimal reflection and power loss.
  9. Feeding Mechanism: Common types include coaxial probe, microstrip line, waveguide coupling, and coplanar waveguide (CPW).
  10. Antenna Efficiency: High efficiency is crucial for effective radiation and minimal losses.
  11. Environmental Considerations: Durability, weather resistance, and material properties for outdoor or aerospace applications.

The advantages of slot antennas are as follows:

  • Compact and lightweight
  • High efficiency and directivity
  • Easy integration with waveguides and printed circuits
  • Suitable for high-frequency applications

The disadvantages of slot antennas are as follows:

  • Complex feeding mechanisms
  • Requires precise fabrication
  • Limited bandwidth in some designs

Slot Antenna Calculator

Inputs

Outputs

EXAMPLE of Slot Antenna calculator (As per formula mentioned below):

INPUTS:

  • Operating frequency: 10 GHz
  • Dielectric constant = 4

OUTPUTS:

  • Slot length = 0.015 meters
  • Slot width = 0.0075 meters
  • Distance between slot and GND plane = 0.00119 meters

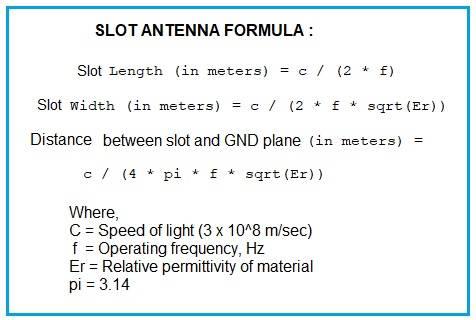

Slot Antenna Formula

Following slot antenna formula or equations are used in the above slot antenna calculator.

Slot Antenna Formula

This calculator is useful to design the slot Antenna or to determine its parameters.
