WiFi-7 Channel number to center frequency conversion as per 802.11be
This page covers WiFi-7 Channel number to center frequency conversion calculator as per IEEE 802.11be. This WiFi-7 channel frequency calculator converts channel number to center frequency as per bandwidth and channel number as inputs.
Introduction: IEEE 802.11be EHT (Extremely High Throughput) standard has been targeted for high throughput, low latency applications such as VR (Virtual Reality), AR (Augmented Reality), gaming, cloud computing etc. It supports all the three frequency bands viz. 2.4 GHz, 5 GHz and 6 GHz. It supports different bandwidths such as 20 MHz, 40 MHz, 80 MHz, 160 MHz and 320 MHz. Some of the key features supported include 4096 QAM, MLO (Multi-link operation). 16 x 16 MIMO, OFDMA multi-RU allocation to single STA, Preamble puncturing etc.
➨IEEE 802.11be AP must support 160 MHz width in 6 GHz band, 80 MHz width in 5 GHz band and 20 MHz width in 2.4 GHz band.
➨Non-AP STA must support 80 MHz channel width in 5/6 GHz. 20 MHz STA can operate in 2.4 GHz and 5 GHz bands.
WiFi-7 Channel numbers and center frequencies for 5 GHz/6 GHz Bands
Channel number for various BWs (20, 40, 80, 160 or 320 MHz) are as mentioned in following table-1.
| Channel Bandwidth (BW) (MHz) | Channel numbers (U-NII-5, U-NII-6, U-NII7, U-NII-8) |
|---|---|
| 20 MHz | [1, 5, 9, 13, 17, 21, 25, 29, 33, 37, 41, 45, 53, 57, 61, 65, 69, 73, 77, 81, 85, 89, 93, 97, 101, 105, 109, 113, 117, 121, 125, 129, 133, 137, 141, 145, 149, 153, 157, 161, 165, 169, 173, 177, 181, 185, 189, 193, 197, 201, 205, 209, 213, 217, 221, 225, 229, 233], |
| 40 MHz | [3, 11, 19, 27, 35, 43, 51, 59, 67, 75, 83, 91, 99, 107, 115, 123, 131, 139, 147, 155, 163, 171, 179, 187, 195, 203, 211, 219, 227] |
| 80 MHz | [7, 23, 39, 55, 71, 87, 103, 119, 135, 151, 167, 183, 199, 215] |
| 160 MHz | [15, 47, 79, 111, 143, 175, 207] |
| 320 MHz | [31, 63, 95, 127, 159, 191] |
Table-1*
WLAN Calculator #1 for 5 GHz/6 GHz Bands
NOTE : Enter one Bandwidth value from range {20, 40, 80, 160, 320 }.
EXAMPLE #1: WiFi7 channel center frequency calculation
INPUTS: BW = 320 MHz, Channel Number = 31
OUTPUT: WiFi 7 (802.11be) center frequency = 6105 MHz
WiFi-7 Channel center frequency as per IEEE 802.11be

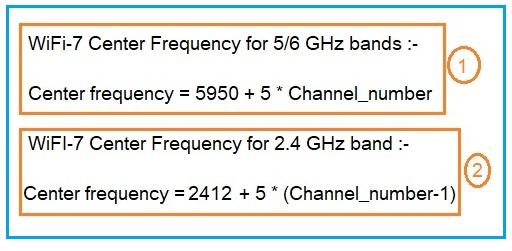

Following formula or equation is used for this WiFi-7 Channel center frequency. Formula-1 is used for 5/6 GHz bands and Formula-2 is used for 2.4 GHz band.
WiFi 7 Channel Assignments | Center Frequency (MHz), Bandwidth(MHz)

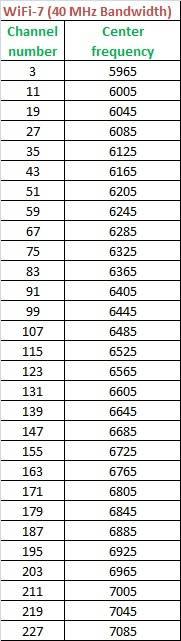

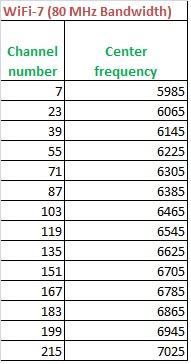

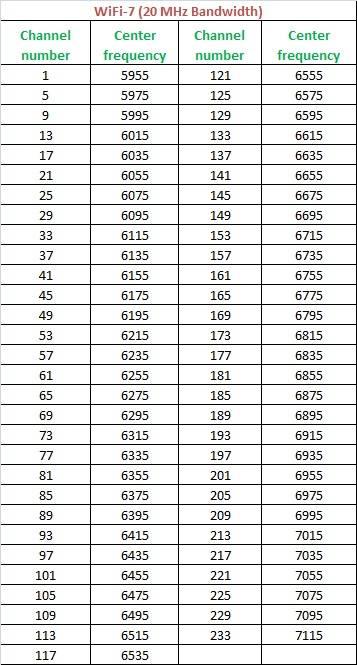

Following table mentions various channel numbers versus their respective center frequencies for different bandwidths viz. 20 MHz, 40 MHz, 80 MHz, 160 MHz and 320 MHz.
WLAN Calculator #2 for 2.4 GHz Band
Following table-2 mentions channel numbers for 20 MHz in 2.4 GHz WiFi band.
| WLAN 2.4 GHz Bandwidth | Channel Numbers |
|---|---|
| 20 MHz | [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14] |
Table-2**
EXAMPLE #2: WiFi 2.4 GHz channel center frequency calculation
INPUTS: WiFi 2.4 GHz Channel Number = 10 (Legacy wifi devices)
OUTPUT: WiFi 2.4 GHz center frequency = 2457 MHz
