Understanding Motion Sensors: Types and Principles

motion sensor
sensor technology
ultrasonic sensor
microwave sensor
pir sensor

This article explores different types of motion sensors, explaining their working principles. We’ll cover ultrasonic motion sensors, dual motion sensors, PIR sensors, and microwave motion sensors.

Definition: Motion refers to a change in an object’s or person’s position over time, relative to an initial reference point. It can be described by displacement, velocity, direction, acceleration, and time. A motion sensor is a device that detects this change in position.

Here’s a breakdown of the different types:

  • PIR Motion Sensor
  • Ultrasonic Motion Sensor
  • Microwave Motion Sensor
  • Dual Motion Sensor

PIR Motion Sensor

PIR motion sensor

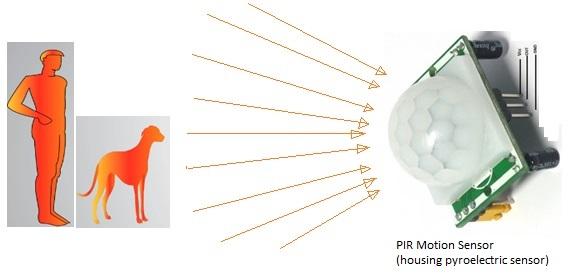

Figure-1: PIR Motion Sensor

PIR stands for Passive Infrared motion sensor. As the name suggests, it doesn’t emit anything itself. Instead, it detects infrared energy emitted by living beings to determine their presence. Humans radiate energy in the form of infrared waves, and changes in the thermal energy sensed by the PIR sensor trigger a response.

This type works best in a Line of Sight (LOS) path, typically covering a 35 to 40-degree angle. However, it may not perform well at night, in dark conditions, or when detecting slow movements.

Ultrasonic Motion Sensor

Ultrasonic Sensor

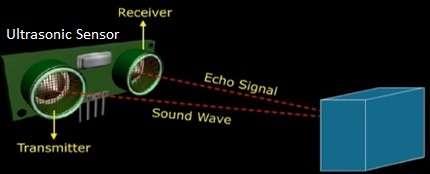

Figure-2: Ultrasonic Motion Sensor

This sensor generates ultrasonic waves using an ultrasonic crystal (usually around 40 KHz). It has two main parts: a transmitter and a receiver. The transmitter converts electrical energy into ultrasonic sound waves, and the receiver listens for the returning echo. By analyzing the echo, it can determine the presence or motion of an object or person.

Ultrasonic motion sensors are commonly used in automatic car parking systems and robotics.

Microwave Motion Sensor

Microwave Motion Sensor

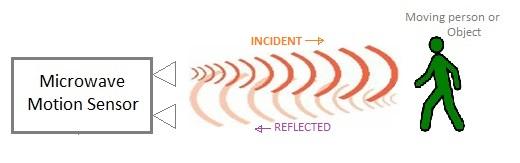

Figure-3: Microwave Motion Sensor

This type of motion sensor transmits microwave frequencies and then receives the reflected signal. It detects motion by analyzing changes in the frequency or amplitude of the reflected microwave frequency.

The coverage area of the motion sensor depends on the speed and size of the object or person, as well as the sensor’s mounting height.

Microwave motion sensors are known for their long lifespan and ability to function in harsh environments. However, they can have potential health effects and are prone to false alarms under certain conditions.

Dual Motion Sensor

A dual motion sensor combines two different types of motion sensors in one device.

This guide on motion sensor basics and types should help you select the appropriate motion sensor for your specific needs and application.
