Motion sensors are essential in modern security, automation, and home automation. They come in two main types: active and passive. The key difference lies in how they detect motion. Active sensors emit signals and analyze their reflections, while passive sensors detect changes in infrared radiation. Understanding their operational principles, advantages, and disadvantages is crucial for selecting the right sensor for a specific application.

What is a Motion Sensor?

Motion is a change in an object’s or person’s position over time relative to a reference point. This change can be defined by displacement, velocity, direction, acceleration, and time. A motion sensor detects this change.

Here are some common types of motion sensors:

  • PIR (Passive Infrared) sensor
  • Ultrasonic sensor
  • Microwave sensor
  • Tomographic sensor
  • Combination sensors (integrating multiple technologies)

Active Motion Sensors

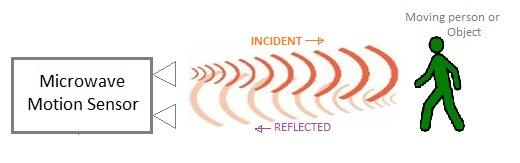

Microwave Motion Sensor

Active motion sensors, like microwave sensors, actively emit signals and analyze the reflected signals to detect motion.

Features of Active Motion Sensors (Microwave Type):

  • Emit microwave frequency signals and analyze the reflected signals to detect motion.
  • Detect changes in frequency or amplitude to determine motion. Amplifiers and DSP algorithms are often used for accurate motion detection in noisy environments.
  • Sense motion based on the speed and size of the object.
  • The coverage distance depends on the object’s speed, size, and sensor mounting height. Typically, the range is 1.5 to 2 times the mounting height for objects moving at speeds around 40 kmph.

Advantages of Active Motion Sensors:

  • Suitable for harsh environments with irregular heat cycles.
  • Long lifespan, typically around 100,000 hours.

Disadvantages of Active Motion Sensors:

  • Microwave radiation can be hazardous to health, so low-power sensors are preferred.
  • Microwave frequencies cannot penetrate metal objects.
  • Prone to false alarms due to wind-blown objects or emissions from fluorescent lights.
  • May operate at irregular intervals, potentially missing intruders.

Passive Motion Sensors

PIR motion sensor

Passive motion sensors, like PIR sensors, detect changes in infrared radiation emitted by objects.

Features of Passive Motion Sensors (PIR Type):

  • PIR stands for Passive Infrared.
  • PIR sensors contain a pyroelectric sensor that generates energy when exposed to heat. Humans and animals radiate infrared energy. When a person or animal enters the sensor’s range, the sensor detects the change in thermal energy.
  • Detect increases in received thermal energy to determine motion.
  • Sense motion based on heat and light.

Advantages of Passive Motion Sensors:

  • Reliably detect motion indoors and in both daylight and darkness.

Disadvantages of Passive Motion Sensors:

  • Do not operate effectively above 35°C.
  • Work best in line-of-sight and may have issues in corner regions.
  • Insensitive to very slow motion.
  • Can trigger false alarms outdoors due to environmental factors.

To reduce false alarms, some systems combine microwave and passive infrared sensors into dual motion sensors, leveraging the strengths of both technologies.

Active vs. Passive Motion Sensor: A Comparison Table

ParameterActive Motion SensorPassive Motion Sensor
Working PrincipleEmits signals (ultrasonic, microwave, or infrared) and detects reflections.Detects changes in infrared radiation emitted by objects.
ComponentsIncludes an emitter and a receiver.Only includes a detector (no emitter).
EmissionActively emits signals for motion detection.Does not emit any signals; detects passive radiation changes.
Motion Detection MechanismMeasures changes in the emitted signal’s frequency, phase, or amplitude.Measures changes in infrared energy levels.
Detection RangeMedium to long range, depending on sensor type and emitted signal.Short to medium range, typically up to 10-20 meters.
Object DetectionDetects both small and large movements, even through barriers.Detects only warm, moving objects like humans or animals.
Environmental SensitivitySensitive to environmental factors like wind, vibrations, and interference.Less sensitive to external factors, but affected by temperature.
Power ConsumptionHigher power consumption due to active emission.Lower power consumption due to passive detection.
Cost and ComplexityHigher cost and complexity due to additional components and signal processing.Lower cost and simpler design.
ApplicationsUsed for automatic doors, security, industrial automation, traffic monitoring.Used for home security, automatic lighting, HVAC systems.

Conclusion

Active and passive motion sensors each offer distinct advantages and disadvantages, making them suitable for different applications. Active sensors provide enhanced sensitivity and a longer detection range, ideal for situations requiring precise motion detection. Passive sensors, with their lower power consumption and reduced sensitivity to minor environmental changes, are better for security and lighting automation. The best choice depends on specific requirements for range, sensitivity, and environmental robustness.
