IoT Weather Monitoring System Architecture

Introduction

The system utilizes sensors to gather real-time data on various atmospheric conditions, including temperature, humidity, wind speed, precipitation, and rainfall. These systems are crucial in various sectors like disaster management, transportation, and agriculture.

The weather data can be accessed from anywhere using mobile and web apps, enabling proactive decision-making in response to changing weather patterns.

Weather Monitoring System Components

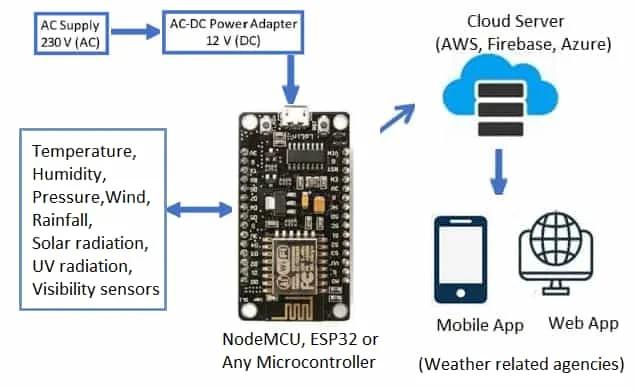

Like any other IoT system, it consists of sensors, a Microcontroller Unit (MCU) or Microprocessor Unit (MPU) including a wireless module, a power supply, and cloud connectivity.

Sensors are installed at different locations to gather weather related data, as described below. The MCU or MPU collects data from sensors and uploads it to cloud servers such as AWS, Azure, ThinkSpeak, and Google. The power supply is needed to power the MCU/MPU. Cloud connectivity can be established using WiFi or cellular connections.

Common Sensors Used

Following are the common sensors employed to monitor various parameters related to weather:

• Temperature sensors: Examples include the Texas Instruments TMP Series and sensors from Maxim Integrated.
• Humidity sensors: Examples include Sensirion (SHT31, SHT35) and Silicon Labs (Si70xx series).
• Pressure sensors: Examples include the Bosch BMP series and Honeywell HSC series.
• Wind sensors: Used to measure wind speed and direction. Examples include the Davis Instruments 6410 series and Young Industries 05103 series.
• Rainfall sensors: Used to measure rainfall intensity and accumulation. Examples include the Texas Instruments (Tipping Bucket Rain Gauge) and Hydrological Services TB series.
• Solar radiation sensors: Examples include the Apogee Instruments SQ series and Kipp & Zonen CMP series.
• UV radiation sensors: Examples include the Skye Instruments UVS series and the Vernier Software UV-VIS Spectrometer.
• Visibility sensors: Examples include the Vaisala PWD series and the Optical Scientific Visibility Meter.

Benefits or Advantages of Weather Monitoring System

Following are the benefits or advantages of weather monitoring system.

1. These systems provide valuable information on weather conditions to farmers. This information helps farmers optimize irrigation, planting, and harvesting schedules and reduces crop losses due to adverse weather, leading to improved overall agricultural productivity.
2. IoT sensors monitor weather conditions to optimize energy generation and consumption. It enables energy providers to adjust renewable energy production based on weather forecasts. Moreover, it helps consumers optimize energy usage for heating, cooling, and lighting.
3. It provides real-time weather data, enabling accurate weather forecasting and helping in timely decision-making.
4. These IoT-based systems serve as early warning systems for severe weather events such as storms, floods, hurricanes, and wildfires.
5. The collected valuable data helps engineers design resilient structures that can withstand extreme weather conditions and enables proactive maintenance to prevent weather related damage.
6. It provides real-time information to authorities, helping them in planning rescue and evacuation efforts.
7. It tracks environmental parameters such as air quality, UV levels, and pollution levels, which provides valuable data for environmental monitoring and public health initiatives.
8. It provides valuable information to tourists and outdoor enthusiasts. This enables them to plan various activities, including skiing, hiking, and outings, based on current and future forecasts.
9. It helps in meteorological studies, climate research, and educational purposes.
10. It enables more precise predictions of weather patterns and phenomena.

Overall, IoT-based weather monitoring systems play a crucial role in providing accurate and timely weather information for various applications, from public safety and disaster preparedness to agriculture, energy management, and environmental protection.
