This page describes the 5G NR Uplink Power Control Procedure used between the UE and gNB. The uplink power control procedure determines the transmit power of the different uplink physical channels (PUCCH, PUSCH) or signals (SRS, PRACH). The equations and IEs (Information Elements) are also mentioned.

Introduction

In wireless systems, it is often required to either increase or decrease the transmit power of the UE or mobile device. This is known as uplink power control. Transmit power is increased to meet the required SNR or BER at the gNB (or base station or eNB). Transmit power is decreased to minimize co-channel interference in the 5G system.

There are two types of power controls: open loop power control and closed loop power control.

  • ConfiguredGrantConfig IE defines the “powerControlLoopToUse” field.
  • The IE Alpha defines possible values for uplink power control.
  • In 5G NR, the power control procedure has been modified to work for all the numerologies or subcarrier spacing/other system parameters.
  • The term 2μ2\mu in the following equations supports different 5G NR numerologies. The μ\mu ranges from 0 to 5 to support various NR numerologies.
  • There is a field called “TPC command” which indicates how much power should be reduced or increased. This is mentioned below in the table.

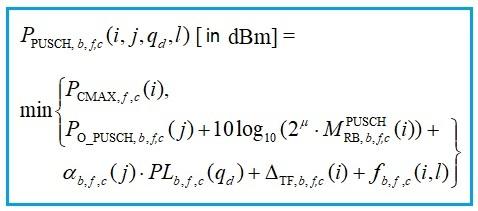

The following equation-1 mentions various parameters needed in order to control the power of the PUSCH channel.

PUSCH power control

The following power control IE (Information Element) is used by RRC for PUSCH.


PUSCH-PowerControl ::=      SEQUENCE {
tpc-Accumulation     ENUMERATED { disabled },
msg3-Alpha      Alpha,
p0-NominalWithoutGrant     INTEGER (-202..24),
p0-AlphaSets      SEQUENCE (SIZE (1..maxNrofP0-PUSCH-AlphaSets)) OF P0-PUSCH-AlphaSet,
pathlossReferenceRSToAddModList     SEQUENCE (SIZE (1..maxNrofPUSCH-PathlossReferenceRSs)) OF PUSCH-PathlossReferenceRS,
pathlossReferenceRSToReleaseList     SEQUENCE (SIZE (1..maxNrofPUSCH-PathlossReferenceRSs)) OF PUSCH-PathlossReferenceRS-Id,
twoPUSCH-PC-AdjustmentStates      ENUMERATED {twoStates},
deltaMCS      ENUMERATED {enabled},
sri-PUSCH-MappingToAddModList      SEQUENCE (SIZE (1..maxNrofSRI-PUSCH-Mappings)) OF SRI-PUSCH-PowerControl,
sri-PUSCH-MappingToReleaseList      SEQUENCE (SIZE (1..maxNrofSRI-PUSCH-Mappings)) OF SRI-PUSCH-PowerControlId
}

P0-PUSCH-AlphaSet ::=      SEQUENCE {
p0-PUSCH-AlphaSetId      P0-PUSCH-AlphaSetId,
p0      INTEGER (-16..15),
alpha      Alpha
}

P0-PUSCH-AlphaSetId ::=      INTEGER (0..maxNrofP0-PUSCH-AlphaSets-1)

PUSCH-PathlossReferenceRS ::=     SEQUENCE {
pusch-PathlossReferenceRS-Id      PUSCH-PathlossReferenceRS-Id,
referenceSignal      CHOICE {
ssb-Index      SSB-Index,
csi-RS-Index      NZP-CSI-RS-ResourceId
}
}

PUSCH-PathlossReferenceRS-Id ::=      INTEGER (0..maxNrofPUSCH-PathlossReferenceRSs-1)

SRI-PUSCH-PowerControl ::=      SEQUENCE {
sri-PUSCH-PowerControlId      SRI-PUSCH-PowerControlId,
sri-PUSCH-PathlossReferenceRS-Id      PUSCH-PathlossReferenceRS-Id,
sri-P0-PUSCH-AlphaSetId      P0-PUSCH-AlphaSetId,
sri-PUSCH-ClosedLoopIndex      ENUMERATED { i0, i1 }
}

SRI-PUSCH-PowerControlId ::=      INTEGER (0..maxNrofSRI-PUSCH-Mappings-1)

BetaOffsets ::=      SEQUENCE {
betaOffsetACK-Index1      INTEGER(0..31),
betaOffsetACK-Index2      INTEGER(0..31),
betaOffsetACK-Index3      INTEGER(0..31),
betaOffsetCSI-Part1-Index1      INTEGER(0..31),
betaOffsetCSI-Part1-Index2      INTEGER(0..31),
betaOffsetCSI-Part2-Index1      INTEGER(0..31),
betaOffsetCSI-Part2-Index2      INTEGER(0..31)
}

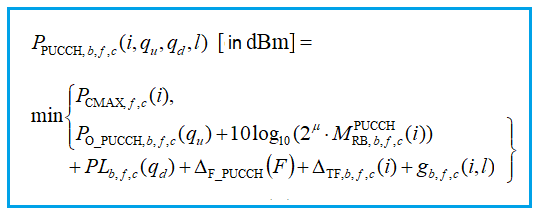

The following equation-2 mentions various parameters needed in order to control the power of PUCCH channel.

PUCCH power control

The following power control IE (Information Element) is used by RRC for PUCCH.


PUCCH-PowerControl ::=    SEQUENCE {
deltaF-PUCCH-f0    INTEGER (-16..15),
deltaF-PUCCH-f1    INTEGER (-16..15),
deltaF-PUCCH-f2    INTEGER (-16..15),
deltaF-PUCCH-f3    INTEGER (-16..15),
deltaF-PUCCH-f4    INTEGER (-16..15),
p0-Set   SEQUENCE (SIZE (1..maxNrofPUCCH-P0-PerSet)) OF P0-PUCCH,
pathlossReferenceRSs   SEQUENCE (SIZE (1..maxNrofPUCCH-PathlossReferenceRSs)) OF PUCCH-PathlossReferenceRS,
twoPUCCH-PC-AdjustmentStates   ENUMERATED {twoStates},
...
}

P0-PUCCH ::=   SEQUENCE {
p0-PUCCH-Id   P0-PUCCH-Id,
p0-PUCCH-Value   INTEGER (-16..15)
}

P0-PUCCH-Id ::=    INTEGER (1..8)

PUCCH-PathlossReferenceRS ::=   SEQUENCE {
pucch-PathlossReferenceRS-Id   PUCCH-PathlossReferenceRS-Id,
referenceSignal   CHOICE {
ssb-Index   SSB-Index,
csi-RS-Index   NZP-CSI-RS-ResourceId
}
}

SRS | Sounding Reference Signal

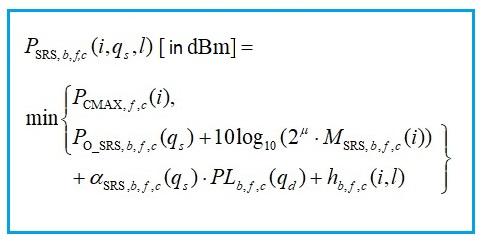

The following equation-3 mentions various parameters needed in order to control the power of SRS signal.

SRS power control

SRS-config IE uses “srs-PowerControlAdjustmentStates” field.

PRACH | Physical Random Access Channel

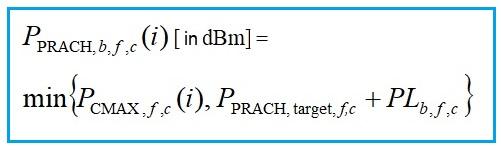

The following equation-4 mentions various parameters needed in order to control the power of PRACH channel.

PREAMBLE_POWER_RAMPING_STEP field is used during “Random Access Preamble transmission”.

PRACH power control

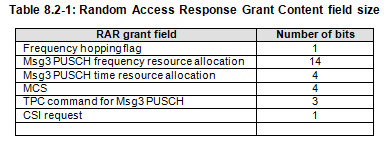

Following are the contents of the random access response grant field.

5G NR Random Access Response Grant Fields

The following table mentions the meaning of the TPC command field in dB value.

TPC command value (in dB)
0-6
1-4
2-2
30
42
54
66
78

The total UE transmit power is defined as the sum of the linear values of UE transmit powers for PUSCH, PUCCH, PRACH, and SRS.

References

  • Section 7: uplink power control in 3GPP TS 38.213 V15.2.0 (2018-06), (Release 15)
  • 3GPP TS 38.331 V15.2.0 (2018-06), (Release 15), RRC protocol specification
