Understanding UWB Networks: Top Applications Explained

Ultra Wideband (UWB) is a radio technology that uses very low energy levels for short-range, high-bandwidth communication over a large portion of the radio spectrum. Unlike traditional narrowband systems, UWB transmits data across a wide frequency range (typically from 3.1 GHz to 10.6 GHz) with very low power. It allows for high data rates and precise positioning capabilities.

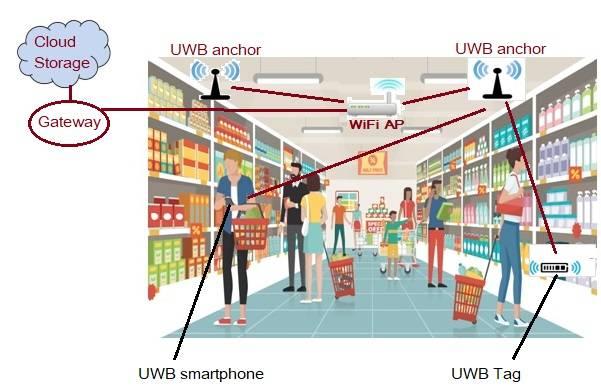

UWB networks consist of a combination of transmitters, receivers, antennas, tags, anchors, controllers, processing units, software, synchronization mechanisms, and power supplies. These elements work together to provide precise, high-speed communication and positioning capabilities. Let’s understand the functions of each of these UWB network elements:

• UWB Transmitter: The UWB transmitter generates and sends out UWB pulses over a wide frequency spectrum. It encodes data into short pulses that are transmitted at very high frequencies. These pulses are spread over a wide range of frequencies, which helps in achieving high data rates and precise timing information.

• UWB Receiver: The UWB receiver captures and decodes the UWB pulses transmitted by the UWB transmitter. It detects the incoming UWB signals and processes them to extract the encoded data. The receiver also measures the time of arrival of the pulses for positioning and tracking purposes.

• Antenna: Both the transmitter and receiver are equipped with UWB antennas that can handle the wide frequency range of UWB signals. The antennas are designed to efficiently transmit and receive UWB signals across the wide bandwidth, ensuring minimal signal loss and distortion.

• UWB Tags: UWB tags are small devices that can be attached to objects or worn by people. The function of these tags is to transmit UWB signals periodically or on demand, allowing them to be tracked precisely by UWB receivers or anchors.

• UWB Anchors: UWB anchors are fixed reference points within the UWB network. Anchors receive signals from UWB tags and calculate their precise locations based on the time of arrival (ToA) or time difference of arrival (TDoA) of the signals. Multiple anchors are used to triangulate the position of a tag.

• UWB Controllers or Gateways: These are central devices that manage communication within the UWB network. Controllers collect data from UWB anchors, process positioning information, and may interface with external systems or networks. They can also manage the overall network configuration and ensure synchronization among devices.

Processing units are embedded within UWB devices. Software and algorithms are required to interpret data collected by the UWB network. UWB networks require precise time synchronization between devices. UWB devices require a power source, which can be batteries or external power supplies.

Key Features of UWB

The following are the key features or benefits of UWB technology:

• Wide Frequency Range: Operates over a large portion of the radio spectrum.
• High Data Rates: Can support data rates up to hundreds of megabits per second.
• Low Power Consumption: Transmits at very low power levels, reducing interference with other wireless systems.
• Precision Location: Provides very accurate positioning and ranging capabilities.
• Penetration Ability: Can penetrate through obstacles like walls, making it effective in various environments.

Ultra Wide Band Applications

Following are the applications of Ultra Wide Band (UWB).

1. Precision Positioning and Tracking

• Indoor Navigation: UWB provides centimeter-level accuracy for indoor positioning, making it ideal for navigation in complex indoor environments such as airports, malls, and hospitals.
• Asset Tracking: Used in logistics and manufacturing to track the location of assets and inventory in real-time, improving operational efficiency.
• Sports and Entertainment: UWB technology is used to track movements of athletes in real-time, providing detailed performance metrics and enhancing the viewing experience.

2. Wireless Communication

• High-Speed Data Transfer: UWB supports high-speed wireless communication between devices such as smartphones, tablets, and computers, enabling fast data transfer and synchronization.
• Wireless USB: UWB can replace traditional USB cables, offering high-speed data transfer without the need for physical connections.

3. Healthcare and Medical Applications

• Patient Monitoring: UWB is used in healthcare facilities to monitor and track the location of patients, ensuring their safety and providing timely medical attention.
• Medical Imaging: UWB technology is used in medical imaging systems to provide high-resolution images, aiding in the early detection and diagnosis of medical conditions.

4. Automotive and Transportation

• Collision Avoidance Systems: UWB is employed in advanced driver-assistance systems (ADAS) for precise distance measurement, helping to prevent collisions and enhance vehicle safety.
• Keyless Entry and Start: UWB enables secure and accurate keyless entry and ignition systems, detecting the proximity of the key fob to the vehicle with high precision.
• In-Vehicle Communication: UWB facilitates high-speed communication between various in-vehicle systems, improving connectivity and the overall driving experience.

5. Industrial and IoT Applications

• Smart Factories: UWB is used in industrial settings for real-time location systems (RTLS) to track tools, equipment, and inventory, optimizing workflows and enhancing productivity.
• IoT Devices: UWB enables precise location tracking and communication for IoT applications, including smart home devices, wearables, and environmental sensors.

6. Retail and Advertising

• Customer Tracking: UWB is used in retail environments to track customer movements and behaviors, providing valuable insights for targeted advertising and improving the shopping experience.
• Interactive Displays: UWB enables interactive advertising displays that can detect the proximity of users and deliver personalized content.

7. Other Applications

Other applications of UWB include Consumer Electronics (Smartphones, tablets, smart home), Military and Defense (tracking of soldiers and equipment), etc.

Conclusion

The unique properties of UWB make it suitable for a wide range of applications across various industries. UWB has the ability to provide high data rates, low power consumption, and precise positioning. Its versatility and advanced capabilities are driving its adoption in fields ranging from healthcare and automotive to industrial automation and consumer electronics.
