ESP8266 WiFi Module: Pinout and Applications

The ESP8266 is a hugely popular WiFi module that brings internet connectivity to microcontrollers, opening doors to cost-effective and versatile solutions for the ever-expanding world of the Internet of Things (IoT). It’s a neat little package that can either stand alone as a microcontroller or be integrated into existing systems to give them WiFi superpowers.

Key Features of the ESP8266 WiFi Module

Here’s a rundown of what makes the ESP8266 tick:

• WiFi Standard: Supports 802.11 b/g/n, and can operate in Access Point (AP), Station (STA), or AP+STA modes, giving you flexibility in how it connects to your network.
• Processor: Powered by a 32-bit RISC processor that hums along at 80 MHz, but can be overclocked to 160 MHz if you need a bit more oomph.
• Memory: Features 32 KB of instruction RAM, 80 KB of user-data RAM, and built-in Flash memory options, typically ranging from 512 KB to 4 MB, providing ample space for your code and data.
• GPIO Pins: Offers configurable General Purpose Input/Output (GPIO) pins with support for PWM (Pulse Width Modulation), I2C (Inter-Integrated Circuit), SPI (Serial Peripheral Interface), ADC (Analog-to-Digital Converter), and UART (Universal Asynchronous Receiver/Transmitter), making it adaptable to a wide array of peripherals.
• Networking: Handles all the necessary networking with its built-in TCP/IP stack, UDP, HTTP, and other communication protocols.
• Low Power Consumption: Designed with energy efficiency in mind, it includes sleep modes to conserve power in battery-operated applications.
• Operating Voltage: Runs on a voltage range of 3.0 to 3.6V, making it compatible with many common microcontrollers and power sources.
• Built-in AT Command Set: Can be controlled using simple AT commands over UART, allowing it to function as a standalone module without requiring extensive programming knowledge.

ESP8266 Pinout Diagram

The ESP8266 module comes in several pin variations, so it’s important to consult the specific datasheet for your particular module.

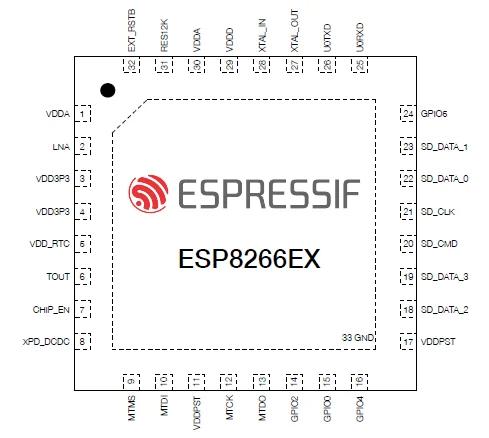

Figure 1: ESP8266EX Pin Diagram

Here’s a table detailing the ESP8266EX pin functions:

Applications of the ESP8266 WiFi Module

The ESP8266’s versatility makes it a perfect fit for a wide range of applications:

1. Home Automation: Imagine controlling your lights, thermostat, and other smart home devices remotely from your smartphone or a web app. The ESP8266 makes this possible.

   Example: Controlling LED lights over WiFi using a mobile app. Commands are sent as HTTP requests to the ESP8266, which acts as a web server.

2. IoT Data Logging: Collect sensor data like temperature and humidity and transmit it to a cloud service for logging and analysis.

   Example: A weather station using an ESP8266 to send sensor data to platforms like ThingSpeak or AWS IoT.

3. Wireless Security Camera: Stream video data wirelessly by connecting the ESP8266 to a camera module, creating a low-cost IP camera.

   Example: A basic security camera that broadcasts video to your phone or PC.

4. Web Server: Host a website directly on the ESP8266 to control or monitor devices through a web browser.

   Example: Hosting a simple.jpgage on the ESP8266 to control home appliances remotely.

Conclusion

The ESP8266 module truly shines in the world of IoT. It gives you WiFi connectivity with minimal power drain and needs only a few external parts to get up and running. Its ability to handle different communication methods and how easy it is to program makes it a favorite for both hobbyists and experts diving into IoT projects.
