Understanding the DAC0808 and ADC0804 ICs

analog digital conversion
dac0808
adc0804
circuit design
components

This article explores the functionality and applications of two important integrated circuits: the DAC0808 (Digital-to-Analog Converter) and the ADC0804 (Analog-to-Digital Converter).

What is DAC0808 IC?

The DAC0808 is a widely used 8-bit Digital-to-Analog Converter (DAC) integrated circuit (IC). Its primary function is to convert digital signals into corresponding analog voltage outputs. It’s a popular choice in applications requiring precise analog voltage levels generated from digital input data. The DAC0808 takes an 8-bit digital input and produces one of 28 (256) discrete voltage levels.

DAC0808 Pin Diagram and Circuit

The DAC0808 processes 8-bit digital inputs, converting them into corresponding analog voltage levels, allowing for 256 distinct voltage levels.

Here’s the pin diagram of the DAC0808 IC:

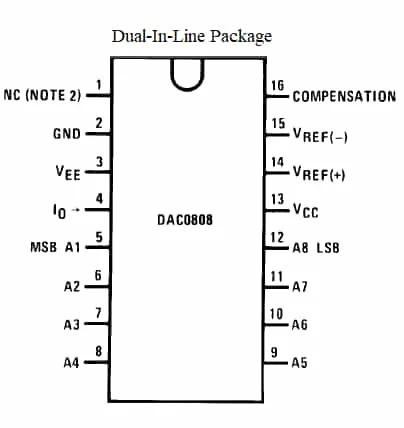

DAC0808 pin diagram

The DAC0808 typically operates with a unipolar output voltage range, generating analog output voltages from 0 volts up to a specified maximum. For example, some versions can output voltages ranging from 0 to 10 volts.

The following table details the pin descriptions of the DAC0808 IC:

Pin numberDescription
1NC
2GND
3VEE
4IO
5A1, MSB
6A2
7A3
8A4
9A5
10A6
11A7
12A8, LSB
13VCC
14VREF +
15VREF -
16COMPENSATION

The DAC0808 features a straightforward parallel interface, ensuring compatibility with various microprocessors and digital systems for easy integration into digital circuits.

Here’s an example circuit utilizing the DAC0808:

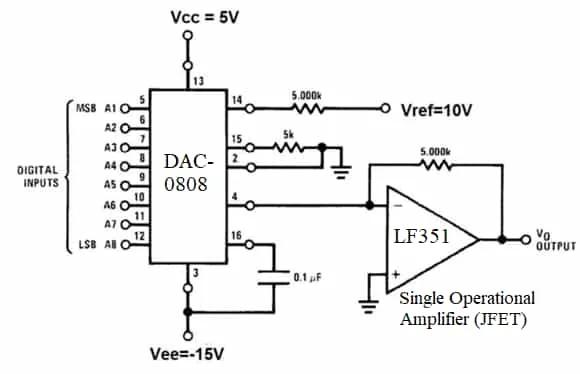

DAC0808 Circuit

In the circuit depicted above, the output pin of the DAC0808 connects to the non-inverting input of an LF351 op-amp. The LF351 functions as a unity gain buffer amplifier. The output voltage of the op-amp will mirror the voltage applied to its non-inverting input, creating a flexible solution for generating precise analog voltages from digital signals.

Applications of DAC0808

  • Analog Signal Generation: Generating precise analog voltage levels from digital control in applications like waveform generation, motor control, audio signal creation, and instrumentation.
  • Data Conversion: Used in data acquisition to convert digital sensor readings into analog signals for processing or display.
  • Automation and Control Systems: Converting digital control signals into analog outputs to drive actuators, valves, and other control elements in industrial automation, process control, and robotics.

Conclusion

The DAC0808 is a versatile and cost-effective solution for converting digital signals into precise analog voltage levels across many applications.

What is ADC0804 IC?

The ADC0804 is an 8-bit successive approximation Analog-to-Digital Converter (ADC) integrated circuit (IC). It is commonly used for converting analog signals into digital data.

ADC0804 Pin Diagram and Circuit

The ADC0804 is an 8-bit ADC, meaning it converts analog input signals into corresponding digital values with 8-bit resolution. This resolution provides for 28 (256) discrete digital output values.

Here is the pin diagram:

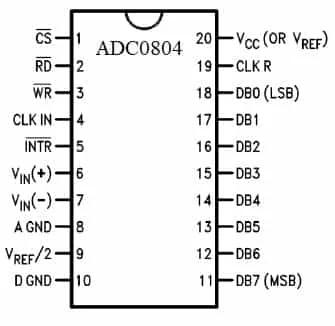

ADC0804 pin diagram

Here’s a table describing the pins:

Pin numberDescription
1CS’
2RD’
3WR’
4CLK IN
5INTR’
6VIN (+)
7VIN (-)
8Analog Ground
9Vref/2
10Digital Ground
11DB7 , MSB
12DB6
13DB5
14DB4
15DB3
16DB2
17DB1
18DB0, LSB
19CLK R
20VCC (or VREF)

The ADC0804 utilizes a successive approximation conversion method. It iteratively determines the digital output value by comparing the input analog voltage against a series of binary-weighted reference voltages. The conversion process takes a fixed amount of time, dictated by the clock frequency and the number of bits.

Below is a circuit to test all the digital outputs of the ADC0804 using an LED bank:

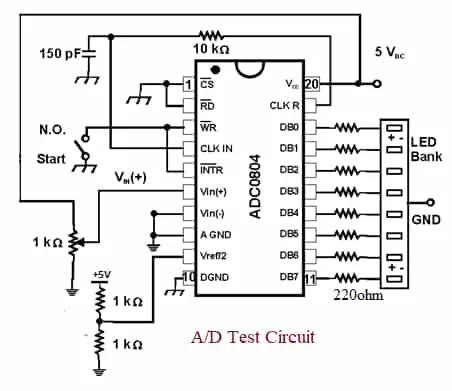

ADC0804 circuit

Applications of ADC0804

  • Data Acquisition Systems: Converting analog sensor readings into digital data for processing by microcontrollers or digital signal processors (DSPs).
  • Instrumentation and Measurement: Digitizing analog signals from sensors, transducers, and other measurement devices.
  • Control Systems: Converting analog control signals into digital form for processing and decision-making by digital controllers.
  • Communication Systems: Digitizing analog voice or audio signals for transmission and processing.

Conclusion

The ADC0804 is a reliable and efficient means of converting analog signals into digital data for a wide range of applications in electronics, instrumentation, and control systems.
