LM386 Audio Amplifier IC: Pinout, Circuit, and Applications

audio amplifier
lm386
circuit design
audio
components

The LM386 is a low-voltage audio power amplifier IC (integrated circuit) widely used in various audio amplifier applications because it’s simple, inexpensive, and easy to use. It can deliver enough power to drive small speakers or headphones.

Let’s learn about the LM386 Audio Amplifier Circuit and explore its pin diagram, specifications, and features. The LM386 is designed for single-ended (ground-referenced) audio output, making it easy to connect to speakers or headphones without needing a complementary output stage.

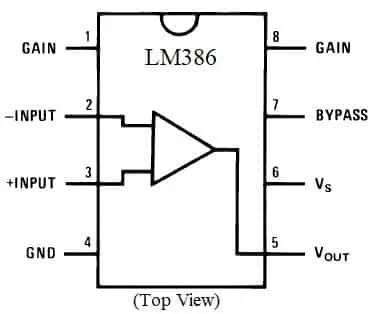

LM386 Pin Diagram

The following table and figure provide details about the LM386 pins.

LM386 pin diagram

Pin numberDescription
1Gain
2Input(-)
3Input(+)
4Ground
5Vout
6Vs
7Bypass
8Gain

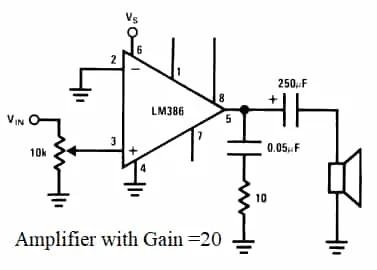

LM386 Audio Amplifier Circuit

The audio signal is typically fed into the non-inverting input pin (Pin 3) of the LM386. The gain of the amplifier can be adjusted by connecting a resistor between Pins 1 and 8, and a capacitor between Pin 1 and ground. The resistor and capacitor haven’t been used in the present circuit as it is designed for minimum components.

LM386 audio amplifier circuit

The LM386 internally amplifies the input audio signal based on the gain set by external components. The amplified signal appears at the output pin (Pin 5). The output pin (Pin 5) is connected to the load, such as a speaker or headphones. A bypass capacitor is often connected between the output pin and ground to improve stability and reduce noise.

Applications of LM386

Here are some applications of the LM386:

  • Portable Audio Devices: The LM386 is commonly used in portable audio devices such as radios, MP3 players, and portable speakers because of its low voltage operation and small size.
  • Intercom Systems: It’s also used in intercom systems and low-power communication devices for amplifying voice signals.
  • Guitar Amplifiers: The LM386 is popular among guitar enthusiasts for building simple and low-cost guitar amplifiers for practice or small performances.
  • Education and Hobby Projects: Its simplicity and ease of use make the LM386 a popular choice for educational purposes and hobby projects involving audio amplification.

Conclusion

In summary, the LM386 audio amplifier IC is a cost-effective and straightforward solution for amplifying audio signals in various applications. Its low voltage operation, internal gain control, and minimal external component requirements make it a versatile choice for hobbyists, educators, and designers looking to add audio amplification to their projects.
