The MAX7219 is an integrated serial input/output common-cathode display driver widely used to drive LED matrix displays, 7-segment numeric displays, and bar graph displays. It can control up to 64 individual LEDs or 8 digits of 7-segment displays with only three digital pins from a microcontroller, making it very efficient for display control in compact spaces.

Features of MAX7219

  • Controls 64 LEDs: Can drive an 8x8 LED matrix or eight 7-segment displays (plus a decimal point).
  • Serial Interface: Communicates with a microcontroller via a 3-wire SPI-compatible interface.
  • Digit and Segment Drivers: Provides eight digit drivers and eight segment drivers for flexible LED control.
  • Adjustable Brightness: Includes a built-in intensity control with 16 levels of brightness.
  • Display Blanking: Can blank the display, useful for power-saving applications.
  • No External Resistors Needed: Current for the display is controlled internally, removing the need for external resistors.
  • Low Power Consumption: Efficient power usage, suitable for portable devices.
  • Multiple ICs Daisy-Chained: Multiple MAX7219 ICs can be cascaded, allowing control of larger displays without additional pins.

MAX7219 Pinout Diagram

The MAX7219 IC is available in a 24-pin DIP or SOIC package, with the following pin configuration:

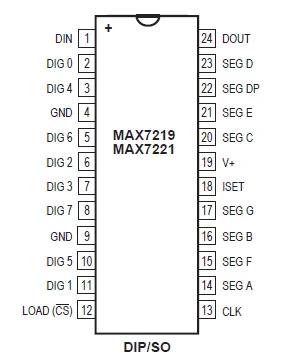

MAX7219 pin diagram

Figure 1: MAX7219 LED display driver pin diagram.

Here are the details of the various pins used in the IC:

  • DIG 0-7: Digit drivers for controlling each column in an 8x8 matrix or each 7-segment digit.
  • D OUT: Serial data output, used to daisy-chain multiple MAX7219 ICs.
  • D IN: Serial data input from the microcontroller or previous IC.
  • LOAD (CS): Chip select
  • CLK: Clock signal
  • V+: Power supply, typically 5V.
  • SEG A-G, DP: Segment drivers for the LEDs, including decimal point (DP).
  • I SET: Current setting resistor, usually connected to a resistor to set brightness.

Working Principle

The MAX7219 receives serial data from a microcontroller and uses its internal registers to control the output to each LED segment or matrix pixel. The IC takes care of multiplexing the display and managing current control for consistent brightness across all LEDs.

Application Example: Controlling an 8x8 LED Matrix

The MAX7219 is commonly used to drive an 8x8 LED matrix display to show scrolling text, animations, and other visual patterns.

  • Circuit Setup:
    • Connect the 8x8 matrix columns to the DIG 0-7 pins and the rows to SEG A-G and DP pins.
    • Connect D IN, LOAD (CS), and CLK pins to the respective digital pins on the microcontroller.
    • Use a resistor on the I SET pin to set a consistent brightness for the display.
  • Programming:
    • Send data to the MAX7219 using the SPI protocol to light up specific LEDs in the matrix.
    • For example, to display scrolling text, programmatically update the data being sent to the MAX7219 to create a pattern that moves across the 8x8 grid.
    • Adjust the intensity register for brightness control based on ambient lighting or user preference.
  • Advantages:
    • Only three pins are needed from the microcontroller to control all 64 LEDs, significantly reducing the complexity of wiring and programming.
    • Easy to cascade multiple MAX7219 ICs if larger displays are required, allowing for versatile designs with minimal pin use.

Other Applications

  • Seven-Segment Displays: Easily drives 8 digits of a 7-segment display, making it ideal for numeric displays such as digital clocks or counters.
  • Bar Graph Display: Used to show levels, such as audio levels in a volume meter, by controlling individual LEDs in a row.
  • Dot Matrix Displays: Perfect for animated text, simple images, or status indicators in embedded projects.

Conclusion

The MAX7219 simplifies LED display driving by integrating all necessary components for segment control, brightness regulation, and multiplexing. This reduces the burden on the microcontroller, allowing more complex displays to be achieved with minimal hardware and programming effort.
