RS485 Pin Diagram and Specifications for DB9 Connector

RS485 is a standard defining the electrical characteristics of drivers and receivers for use in balanced digital multipoint systems. It’s widely used in industrial automation and other applications needing reliable communication over long distances and in noisy electrical environments.

Key Features

  • Differential Signaling: RS485 uses a pair of wires for each signal. This provides better noise immunity and allows for longer communication distances.
  • Multi-Point Configuration: It supports multiple devices (up to 32 nodes) on the same bus, making it ideal for networked communications.
  • Long Distance Communication: RS485 can communicate over distances up to 1200 meters (4000 feet) at lower speeds (around 100 Kbps).
  • High Speed: It can support data rates up to 10 Mbps, although the speed decreases with longer cable lengths.

RS485 Connector 9-Pin Diagram

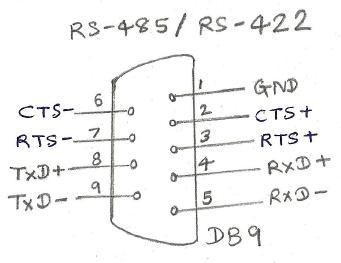

The following describes the RS485 pin diagram for a 9-pin connector. Tx+ and Tx- carry transmit data, and Rx+ and Rx- carry receive data. Because of the differential signals, the signals can travel longer distances.

RS485 interface

As shown in the pin diagram, RS485 has all signals in differential configurations:

  • RxD+ and RxD- are used for receiving data.
  • TxD+ and TxD- are used for transmitting data.
  • CTS+ and CTS- as well as RTS+ and RTS- are used as handshake control signals.

In a multi-drop configuration, about 32 devices can be connected with one master controlling device.

One application of the RS485 interface is in a VSAT NMS (Network Management System), where a software application running on a desktop PC monitors and controls many subsystems. These subsystems can include modems, MUXs, RF up-converters, RF down-converters, and more. All the subsystems and the PC housing the NMS software should have RS485 connectors with proper cable wiring to ensure the multi-drop configuration works correctly.

RS485 Technical Specifications

The following table outlines the technical specifications of the RS485 interface:

SpecificationsRS485
Mode of operationDifferential
Number of drivers/receivers on one line1 driver, 32 receiver
Maximum cable length4000 feet
Maximum data rate30 Mbps
Maximum driver output voltage-7V to +12V
Maximum driver current in high impedance state (power off)+/-100 µA
Receiver input voltage range-7V to +12V
Receiver input sensitivity+/-200mV
Driver load impedance54 Ohms
Receiver Input Resistance>=12 K Ohm

Conclusion

The RS485 interface supports higher data rates and distances compared to RS232. It is a robust and versatile standard for serial communication, particularly well-suited for industrial environments. Understanding the pinout of a typical 9-pin RS485 connector is essential for setting up and troubleshooting RS485 networks. Always ensure proper termination and biasing of the bus to maintain signal integrity. You might also want to refer to the advantages and disadvantages of the RS485 interface.
