Microwave Tube Classification: Klystron, Magnetron, and TWT

Microwave tubes are essential components in high-power applications, ranging from radar systems to communication devices and industrial heating. These tubes generate and amplify high-frequency microwave signals crucial for transmitting and processing information across various domains. The primary types of microwave tubes are the Klystron, Magnetron, and Traveling Wave Tube (TWT), each employing a unique mechanism and tailored for specific applications. This article delves into the classification of microwave tubes, explaining their working principles, advantages, disadvantages, and uses.

Before the advent of transistors, vacuum tubes were the go-to components for electronic circuit design. They were used for amplification, oscillation, switching, and other applications. In scenarios like VSAT Earth stations, TV stations, and military operations, high power is often required, and this is where microwave tubes come into play.

Klystron

The klystron is essentially a vacuum tube designed with cavity resonators to modulate the velocity of an electron beam for amplification.

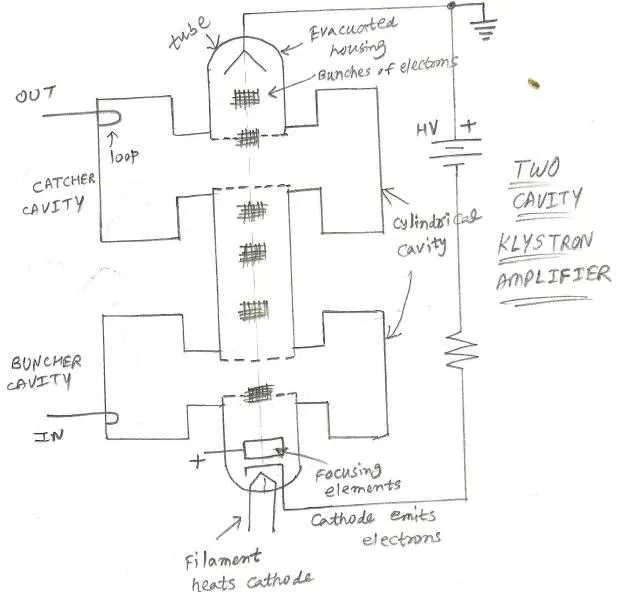

As shown in the figure, the cathode within the vacuum tube is heated by a filament. This heated cathode emits electrons, which are then attracted by the collector. This establishes a current between the cathode and the collector.

Klystrons come in a wide range of sizes. Smaller units produce milliwatts of power, while larger units can generate thousands of watts. They operate at UHF frequencies and up to the 100 GHz frequency band.

A special variation of the basic klystron tube is the reflex klystron. It’s primarily used as a microwave oscillator. The key difference between a standard klystron and a reflex klystron is that the reflex version utilizes a single cavity. Reflex klystrons are designed for low-power applications and are typically small in size, with power outputs ranging from 100 milliwatts to several watts. The output of a reflex klystron can be easily frequency-modulated by adding an AC modulating signal in series with the repeller voltage. However, Gunn diodes have largely replaced this type of klystron.

Advantages of Klystron

1. High Power Output: Klystrons are capable of producing high-power microwave signals, making them suitable for radar and communication systems.
2. Stable Frequency: They offer stable frequency performance, essential for applications requiring consistent output, like satellite communication.
3. High Efficiency: Klystrons have high efficiency in power conversion, which is ideal for high-demand applications.

Disadvantages of Klystron

1. Complex Design and Cost: Klystrons are complex and expensive to manufacture and maintain.
2. Large Size and Weight: They tend to be bulky and heavy, which limits portability and versatility.
3. Narrow Bandwidth: They operate within a limited frequency range, which can restrict their use in broader frequency applications.

Magnetron

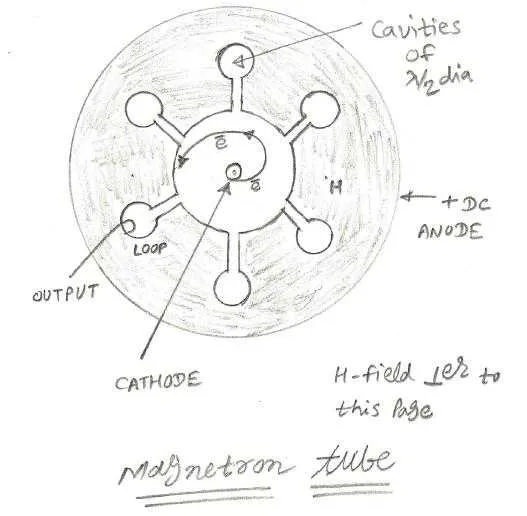

A magnetron combines a simple diode vacuum tube with cavity resonators and an extremely powerful permanent magnet. This microwave tube assembly is depicted in the figure below.

The magnetron consists of a circular anode made of copper, connected to a high-voltage positive DC supply. An even number of resonant cavities, each with a diameter equal to one-half of the operating wavelength, are placed within this circular anode. In the center, there’s an interaction chamber that acts as the cathode, emitting electrons when heated.

The direction of electron flow isn’t the same as in a normal diode; it’s altered by applying a strong magnetic field using a C-shaped magnet. Magnetrons can generate power in the millions of watts. In pulsed mode, they can even generate megawatts of power.

There are two main types of magnetrons: pulsed magnetrons and CW (Continuous Wave) magnetrons. Pulsed magnetrons are used in radar systems, while CW magnetrons are commonly found in microwave ovens.

Advantages of Magnetron

1. Compact and Lightweight: Magnetrons are compact, which makes them suitable for devices where space is a constraint, such as microwave ovens.
2. Cost Effective: They are generally less expensive to produce, making them widely available for consumer applications.
3. High Power Capability: Magnetrons can produce high power outputs, ideal for radar and industrial heating applications.

Disadvantages of Magnetron

1. Low Frequency Stability: They are less stable in frequency compared to other microwave tubes, which can impact signal quality.
2. Broadband Noise: Magnetrons generate broadband noise, which may interfere with other devices and systems.
3. Limited Frequency Control: Magnetrons lack precise control over frequency, making them less suitable for fine-tuned applications.

Traveling Wave Tube (TWT)

This microwave tube is used as a microwave RF power amplifier. The main advantages of a Traveling Wave Tube (TWT) are its wide bandwidth of operation and its ability to generate hundreds or even thousands of watts. TWTs can be used in both continuous and pulsed modes of operation. The length of this tube is typically from about 1 foot to a few feet, spanning many wavelengths relative to the operating frequency.

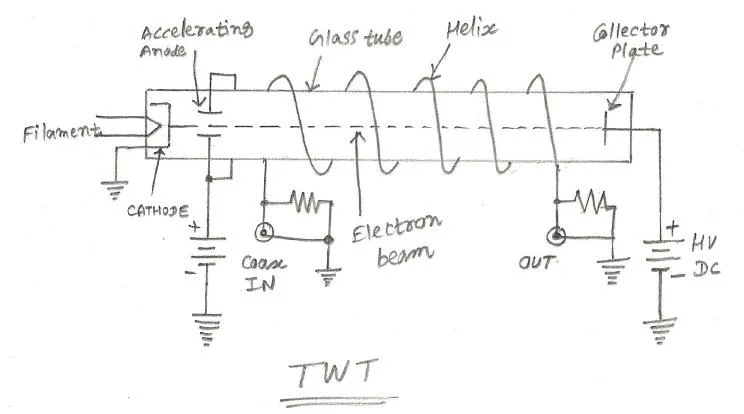

Let’s examine how it works. A coil surrounds the tube. An electron beam passes through the center of the helix, guided by magnets, which provide tight coupling. The microwave signal to be amplified is applied at the cathode end of the helix. The amplified output is then taken from the collector end of the helix.

Advantages of Traveling Wave Tube (TWT)

1. Wide Bandwidth: TWTs can operate across a wide range of frequencies, making them suitable for applications like broadband communications and satellite uplinks.
2. High Gain and Linearity: They provide high gain and consistent amplification, maintaining signal quality over a broad frequency range.
3. Stable Output: TWTs offer a stable and continuous wave output, ideal for communication and broadcasting.

Disadvantages of Traveling Wave Tube (TWT)

1. Expensive Production and Maintenance: TWTs are costly to manufacture and maintain due to their complex design.
2. Sensitivity to Damage: They are delicate and can be easily damaged by power surges or environmental factors.
3. High Operating Voltage: TWTs require high operating voltage, which can increase energy costs and complicate power supply requirements.

Conclusion

Understanding the types and classification of microwave tubes provides valuable insight into the technological advancements that drive RF and microwave applications. The Klystron, Magnetron, and Traveling Wave Tube (TWT) have distinct operational methods, enabling them to serve critical roles in radar, broadcasting, and communications. As innovations in microwave engineering continue, these fundamental components will remain pivotal in advancing high-frequency technology across industries.
