LF Tuner vs. HF Tuner: Key Differences Explained

This article dives into the differences between low frequency (LF) and high frequency (HF) tuners. Let’s explore how they work and what sets them apart.

Low Frequency Tuner

The following image shows a typical low frequency antenna tuner circuit.

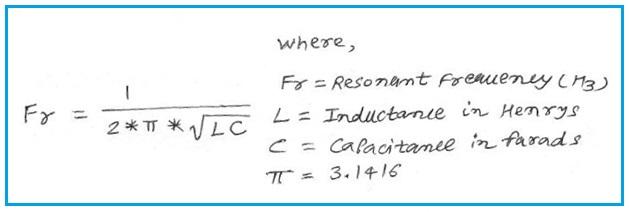

As shown in the image, LF tuners typically use inductors and capacitors to tune the frequency based on the resonant frequency equation. This equation helps determine the appropriate values for these components to achieve the desired frequency.

There are different configurations for tuner circuits, based on how the inductors and capacitors are arranged. Common types include:

• L-network: A simple configuration.
• π-network: Offers more flexibility in impedance matching.
• T-network: Another popular choice for impedance matching.

High Frequency Tuner

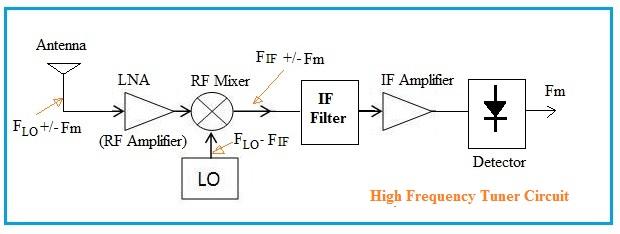

Now, let’s examine high frequency tuners. The image below illustrates a typical HF antenna tuner circuit.

HF tuners often employ an RF mixer and a Local Oscillator (LO) to select the desired frequency. The RF mixer generates both the sum and difference frequencies of the input signals. A filter then selects the desired frequency component.

Amplifiers are strategically placed within the circuit to achieve the required P1dB compression points and to keep noise levels within acceptable limits.
