Resonant Tunneling Diode: Applications, Advantages, and Challenges

resonant tunneling diode
quantum device
high frequency
negative resistance
signal generator

A Resonant Tunneling Diode (RTD) is a type of quantum device that exploits the quantum mechanical effect of resonant tunneling to achieve negative differential resistance (NDR). This effect allows the device to have unique electrical characteristics that are useful in high-frequency as well as high-speed electronics. The figure depicts the structure of an RTD. As shown, it consists of the following layers:

Common materials for RTDs include GaAs/AlAs and InGaAs/AlAs for the barriers and wells.

  • Emitter: Heavily doped semiconductor region.
  • Barrier 1: Thin barrier layer.
  • Quantum Well: Thin layer with a lower potential, typically made of a different semiconductor material.
  • Barrier 2: Another thin barrier layer.
  • Collector: Heavily doped semiconductor region.

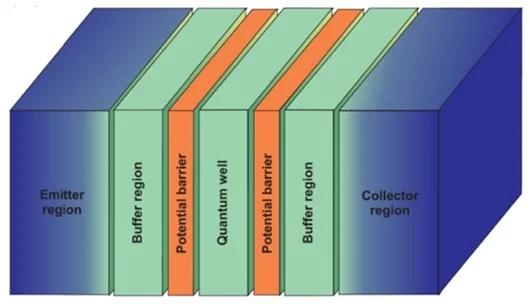

Resonant Tunneling Diode Structure

Image Courtesy: ResearchGate GmbH

Key Features of Resonant Tunneling Diode are as follows:

  • Quantum Tunneling Principle: Electrons can tunnel through potential barriers due to quantum mechanical effects. In RTDs, the structure is designed such that electrons resonate at specific energy levels which allows tunneling at these resonant energies. The RTD typically consists of a quantum well sandwiched between two barriers. When the electron’s energy aligns with the quantum well’s energy levels, it can tunnel through the barriers.

  • Negative Differential Resistance (NDR): It is a region in the current-voltage characteristic of the RTD where an increase in voltage leads to a decrease in current. This property makes RTDs useful in oscillators, amplifiers, and fast switching circuits.

  • High-Frequency Operation: RTDs can operate at very high frequencies, which make them suitable for applications in terahertz and microwave technologies.

Advantages of RTD

Following are the benefits or advantages of RTD:

  • High-speed operation.
  • Compact size.
  • Potential for integration with other semiconductor devices.

Challenges of RTD

Following are the challenges of RTD:

  • Fabrication complexity.
  • Temperature sensitivity.
  • Limited voltage range for stable operation.

Resonant Tunneling Diode Applications

Following are the notable applications of Resonant Tunneling Diode:

  1. High-Frequency Oscillators and Signal Generators: RTDs can generate signals in the terahertz and microwave frequency ranges. This makes them ideal for applications in high-frequency communication systems which include radar and wireless communication. Moreover, RTDs are used to create stable, high-frequency oscillations necessary for various signal processing and communication tasks.

  2. High-Speed Digital Logic Circuits and Memory: RTDs’ ability to switch states quickly makes them suitable for high-speed digital circuits and logic gates. Moreover, the bistable states of RTDs can be used in memory applications, providing fast read and write capabilities.

  3. Amplifiers: Due to their NDR region, RTDs can amplify signals, making them useful in amplifier circuits that require high gain and bandwidth. Moreover, RTDs can be employed in low-noise amplifiers (LNAs) for sensitive signal detection in communication systems and sensors.

  4. Multivalued Logic Circuits: RTDs enable the design of multivalued logic circuits, which can process more than two logic levels. This enhances computational efficiency and reduces the number of required components.

  5. Frequency Mixers and Multipliers: RTDs are used in frequency mixers and multipliers for converting frequencies in communication systems, enabling efficient signal processing in applications like frequency synthesizers and modulators.

  6. Terahertz Imaging and Spectroscopy: RTDs have the ability to operate at terahertz frequencies, which makes them useful in terahertz imaging systems for security screening, medical imaging, and non-destructive testing. Moreover, RTD-based sources and detectors are employed in terahertz spectroscopy for material characterization, chemical analysis, and quality control in various industries.

  7. Secure Communication Systems: It can be used in quantum communication systems for secure data transmission, leveraging their quantum mechanical properties to enhance security.

  8. Integrated Circuits (ICs): RTDs can be integrated with other semiconductor devices like HEMTs (High Electron Mobility Transistors) and HBTs (Heterojunction Bipolar Transistors) to create hybrid circuits with enhanced performance for specific applications.

  9. Voltage-Controlled Oscillators (VCOs): RTDs are used in VCOs to generate frequencies that can be precisely controlled by an input voltage, useful in phase-locked loops (PLLs) and frequency synthesizers.

  10. Ultra-Low Power Devices: RTDs can operate with very low power consumption, making them suitable for portable and battery-operated devices requiring energy efficiency.

  11. Sensor Applications: RTDs can be used in highly sensitive chemical and biological sensors for detecting minute changes in the environment, such as gas concentrations or biological substances.

  12. Optoelectronic Devices: RTDs are explored in optoelectronic applications for high-speed photodetectors and light-emitting devices, benefiting optical communication systems.

Conclusion

Resonant Tunneling Diodes (RTDs) represent a fascinating intersection of quantum mechanics and semiconductor technology. The above-mentioned diverse applications leverage the unique electrical properties of RTDs. All these enable advancements in high-speed, high-frequency, and low-power electronic technologies.
