Mechanical Water Meters: Advantages and Disadvantages

This article explores the pros and cons of mechanical water meters, providing a foundational understanding of their operation and suitability for different applications.

Water meters are essential devices used in residential and commercial buildings to measure the volume of water flowing through pipelines. They quantify both the total water consumption (in cubic meters) and the rate of flow. Various types of water meters exist, categorized by their underlying technology, including mechanical, electromagnetic, and ultrasonic meters.

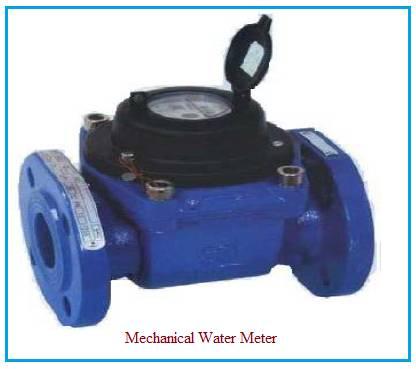

What is a Mechanical Water Meter?

Mechanical water meters utilize an impeller within their construction. As water flows through the meter, the impeller rotates. This rotation is directly proportional to the volumetric reading displayed on the meter. The mechanism of the mechanical meter is carefully calibrated using an adjustable device, which is preset and sealed for security purposes.

These water meters come in various sizes and require a full water flow in the pipeline to achieve optimal measurement accuracy. They are particularly well-suited for measuring clean water with minimal turbidity and are commonly found in urban water supply systems.

When selecting a mechanical water meter for a specific application, consider the following features:

• Leak-proof Construction: The meter should be completely sealed within a metallic outer body to prevent leakage.
• Repairability: It should be possible to repair the meter without disrupting the regular water supply.
• Ease of Maintenance: The meter should be designed for easy maintenance and incorporate a removable mechanism.
• Impeller Protection: The impeller should be protected by a metallic cover to prevent damage.
• Reliable Metrology and Low Pressure Loss: The meter should offer reliable and sensitive metrology while minimizing pressure loss.
• Compliance: Meters should conform to ISO : 4064-2005 specifications.

Benefits (Advantages) of Mechanical Water Meters

Here are the key benefits of using mechanical water meters:

• Reliability and Accuracy: They provide reliable and accurate measurements of water consumption.
• Cost-Effectiveness: They are relatively inexpensive during initial installation compared to other types of water meters.
• Low Maintenance: They require lower in-line maintenance.

Drawbacks (Disadvantages) of Mechanical Water Meters

Despite their advantages, mechanical water meters also have certain drawbacks:

• Mechanical Wear: Mechanical parts are susceptible to damage, necessitating frequent accuracy testing.
• Sensitivity to Water Quality: They are prone to wear due to silty water, leading to a loss of accuracy and potentially requiring frequent replacements.
• Shorter Service Life: Compared to other types of water meters, they typically have a shorter service life.
• Head Loss: They introduce some head loss in the water supply system.
