LoRaWAN Water Meter: Architecture and Benefits

LoRaWAN (Long Range Wide Area Network) water meters, also known as LoRa-based water meters, utilize the LoRaWAN communication protocol to enable long-range, low-power communication for monitoring and managing water consumption. LoRaWAN is a wireless communication technology specifically designed for Internet of Things (IoT) applications. It offers a cost-effective and energy-efficient solution for remote sensing and data transmission.

LoRaWAN is an RF technology that operates on various frequency bands across the world, including 868 MHz, 915 MHz, and 433 MHz. It uses different bandwidths to support varying data rates as needed. LoRaWAN supports several protocol architectures, such as mesh, star, and 6LowPAN.

This system boasts several key features, including a long range (approximately 10 to 30 miles), low power consumption (providing 15-20 years of battery life), and high capacity (supporting millions of messages per gateway). Furthermore, LoRaWAN provides privacy and protection against intrusion through the use of the AES-128 algorithm.

LoRa-based Water Meter Architecture

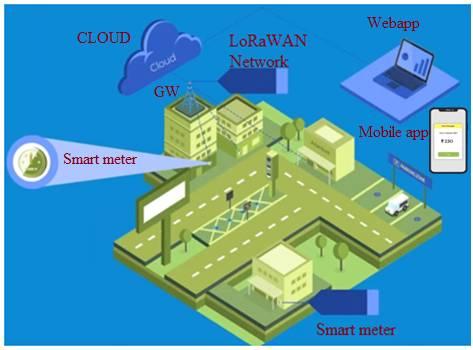

Figure 1 illustrates a simple architecture for a LoRa-based water meter. It comprises smart meters, a LoRa Gateway (base station), cloud storage, and applications.

A single LoRa Gateway device can support multiple LoRaWAN smart meters. Multiple LoRa Gateways are distributed across the region to provide wireless connectivity. These gateways interface with the cloud or network server using standard IP-based communication. A mobile app or web app is then used to monitor water supply, usage, and any potential blockage issues.

LoRaWAN Smart Water Management System: How it Works

Here’s a breakdown of how a LoRaWAN smart water management system operates:

• Installation: Smart meters are installed in the pipeline between the water supply department and individual taps.
• Wireless Connection: These smart meters are wirelessly connected to LoRaWAN gateways using LoRaWAN frequencies.
• Cloud Connectivity: The LoRaWAN gateway connects to the cloud using protocols like MQTT or HTTP.
• Data Transmission: Water usage data is transmitted to the cloud.
• Data Access: The data is then retrieved from cloud storage and displayed on a mobile app or web app.

Key Features of LoRaWAN Water Meters

The key features of LoRaWAN water meters include:

1. Long-Range Communication: LoRaWAN technology allows water meters to communicate over long distances, making it suitable for applications where devices are spread out across a wide area, such as in smart city deployments.
2. Low Power Consumption: LoRaWAN devices are designed to operate on low power, enabling extended battery life for the water meters. This is crucial for IoT devices deployed in remote or hard-to-reach locations where frequent battery replacement may be impractical.
3. Scalability: LoRaWAN networks can support a large number of devices, making them scalable for various deployments. This is particularly useful for water management systems in urban or industrial settings.
4. Two-Way Communication: LoRaWAN enables two-way communication, allowing the water meter to not only send data but also receive commands or configuration updates remotely. This bidirectional communication capability enhances the flexibility and control of the water management system.
5. Security: LoRaWAN incorporates security features to protect the communication between devices and the network. This is crucial for ensuring the integrity and confidentiality of water consumption data.
6. Cost-Effectiveness: LoRaWAN is known for its cost-effectiveness, making it an attractive option for large-scale deployments. The low-cost infrastructure and devices contribute to the affordability of implementing smart water metering systems.
7. Real-Time Data: LoRaWAN water meters can provide accurate and real-time data on water consumption. This data can be used for monitoring usage patterns, detecting leaks, and optimizing water distribution systems.
8. IoT Platform Integration: LoRaWAN water meters can be integrated with IoT platforms, allowing for centralized management, data analysis, and visualization. This integration enhances the overall efficiency of water management systems.

Typical Specifications

Here are typical specifications of a LoRaWAN water meter:

• Opto-port: For reading by humans
• Data Collection: At every 1/6/12/24 Hours
• Data Transmission: At every 1/6/12/24 Hours
• Battery Life: Up to 10 to 15 years
• Range: As per LoRa, approximately 15 Km with a frequency of 923 MHz and class-A
• Extra Feature: Ambient temperature measurement

Benefits and Advantages

The benefits and advantages of LoRaWAN water meters include:

• Transparent Billing: Helps in generating transparent bills for consumers.
• Leakage Notification: Notifies leakage of water, minimizing water wastage.
• Real-Time Data: Produces real-time infrastructure data.
• Consumer Empowerment: Consumers obtain water usage data via mobile app or web app, enhancing their responsibility to save water.
• Savings for Consumers: Consumers have daily accounts of water usage, enabling them to take action to save water and money.
• Integrated Resource Management: Offers an integrated resource management and sustainable solution.
• Long Lifespan: Smart meters offer longer life, reducing the need for frequent battery replacements.

Additional advantages of smart meters include flexible mounting, smaller size, larger display, dirt resistance, nature-friendly design, flood-proof construction, and magnet resistance.

Conclusion

In summary, LoRa-based water meters offer a reliable and cost-effective solution for remote monitoring and management of water consumption. The combination of long-range communication, low power consumption, scalability, and security features makes LoRaWAN technology well-suited for IoT applications in the field of water management.
