Ultrasonic Water Meter: Advantages and Disadvantages
Advertisement
This article explores the pros and cons of ultrasonic water meters, covering their basic functionality and comparing them to other types of meters.
What is an Ultrasonic Water Meter?

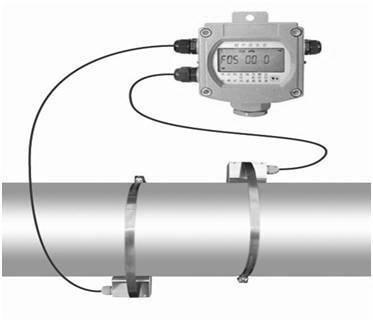

Ultrasonic water meters utilize ultrasonic transducers to emit sound waves. These transducers can be inserted directly into the pipeline or attached to the exterior. The meter measures the velocity of the water within the pipe and converts this velocity into a flow rate.
Ultrasonic meters are primarily employed for measuring the velocity of liquids, such as water and certain chemicals, that allow the passage of ultrasonic waves.
There are two main types of ultrasonic flow meters:
- Transit Time Based: This type measures the time it takes for an ultrasonic pulse to travel between two sensors. When there is no flow, the travel time is the same in both directions (upstream and downstream). When water is flowing, the upstream wave travels slower and takes longer than the downstream wave. The faster the fluid moves, the greater the time difference. This time difference is used to calculate the flow rate. Transit time meters are often used for measuring gas and vapor flow.
- Doppler Flow Meter: This type transmits ultrasonic waves towards the flowing liquid and measures the frequency of the reflected waves. In a no-flow situation, the transmitted and reflected frequencies are identical. When the liquid is flowing, the reflected frequency differs from the transmitted frequency. The faster the fluid moves, the greater the frequency shift. Algorithms are used to determine flow rate based on this frequency shift.
Benefits (Advantages) of Ultrasonic Water Meters
Here are some key advantages of using ultrasonic water meters:
- High Reliability, Stability, and Accuracy: They offer consistent and precise measurements over long periods.
- Low Maintenance: These meters generally require very little maintenance, reducing operational costs.
- No External Power Source Required (Sometimes): Many models operate on batteries, eliminating the need for external power connections.
- Fast Response to Flow Transients: They can quickly and accurately detect changes in flow rate.
- Long Battery Life: Expect a battery life of at least 5 years in most models.
- Self-Adjusting Sensors: The sensors can adapt to changes in pipe diameter due to corrosion or scaling, maintaining accuracy.
- Remote Monitoring: Modern ultrasonic water meters often utilize cellular technologies like GSM or GPRS to transmit meter readings to a central server for easy monitoring and data analysis.
Drawbacks (Disadvantages) of Ultrasonic Water Meters
Despite their advantages, ultrasonic water meters also have some disadvantages:
- Higher Initial Cost: They are generally more expensive than other types of water meters.
- Performance Affected by Pipe Condition: They perform best when used with clean and rust-free pipe walls. Deposits or corrosion can interfere with the ultrasonic signals.
- Requires Full Pipe: The pipe must be completely full of water to ensure accurate flow measurement. Air pockets or partially filled pipes can lead to errors.
- Requires Sonic Conductivity: The fluid being measured must be able to conduct sonic energy effectively. This is generally not a problem with water but could be a factor with other liquids.
